Potencjometry precyzyjne jednoobrotowe 2.44" Servo 24 (62 mm)

 Stan z dnia 2024-06-21


Nazwa
Opis
Cena PLN
przy ilościach:
Dostawa
w tyg.
StanDokumentUwagi
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 1510

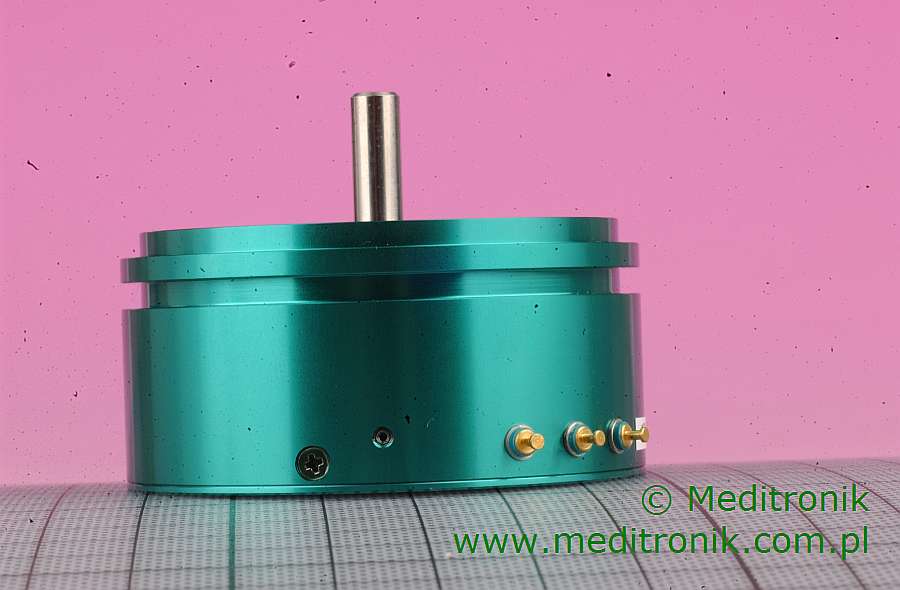

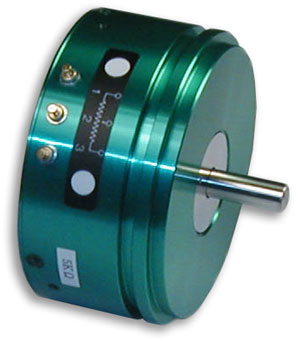

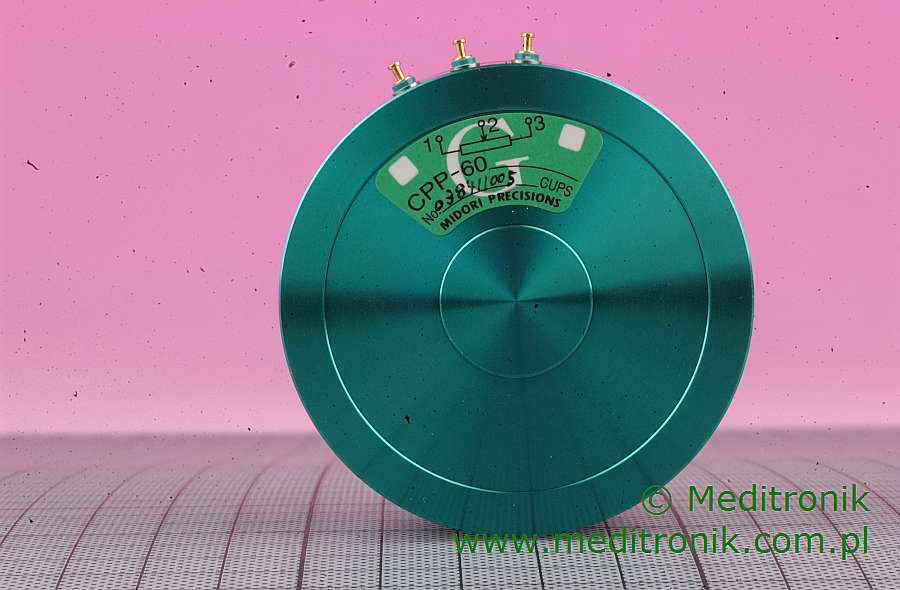

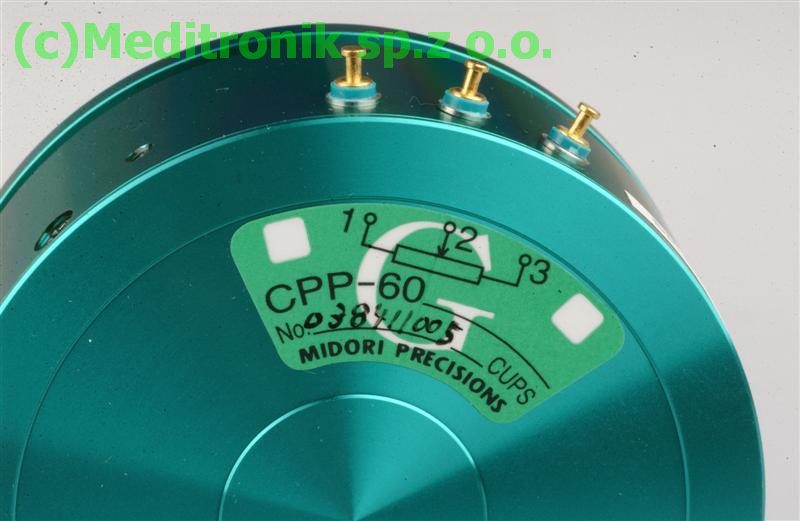

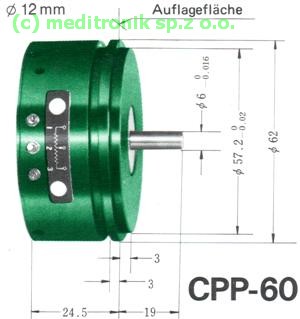

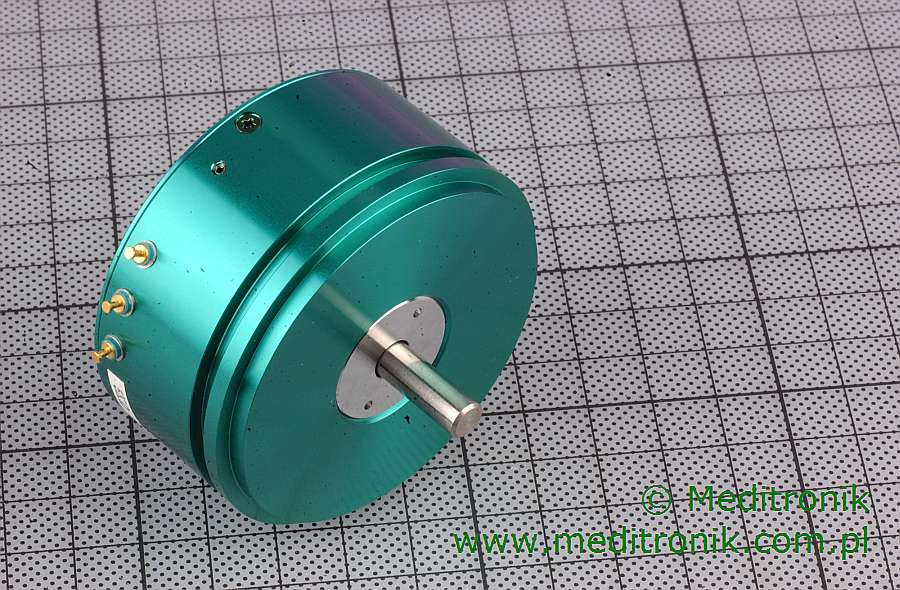

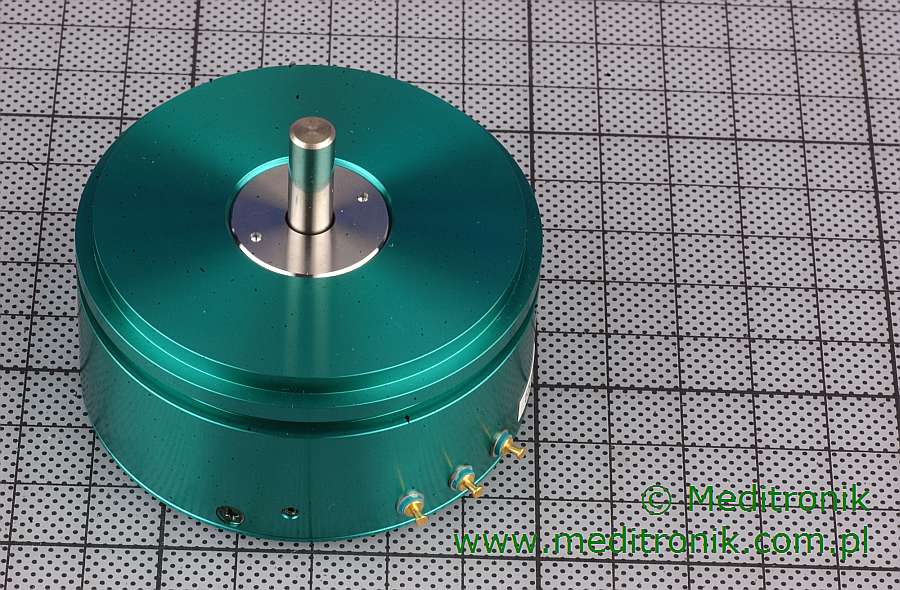

 CPP-60 MIDORI

PM CPP-60 MIDORI

Potencjometr przewodzący plastyk, Servo ?? 62 mm;tol.10%;lin 0,05% kąt.el. 340 st; mech 360 st; 4W/70st;1 obrotowy. śr.62 mm; gł. 24,5mm ośka 6mm, dł.19mm; wypr.z boku. Proponujemy podobny f-rmy Sakae PMFCP50A..
ZapytajZapytajZapytaj BRAKpdf foto pdf foto foto foto foto Info Zapytaj

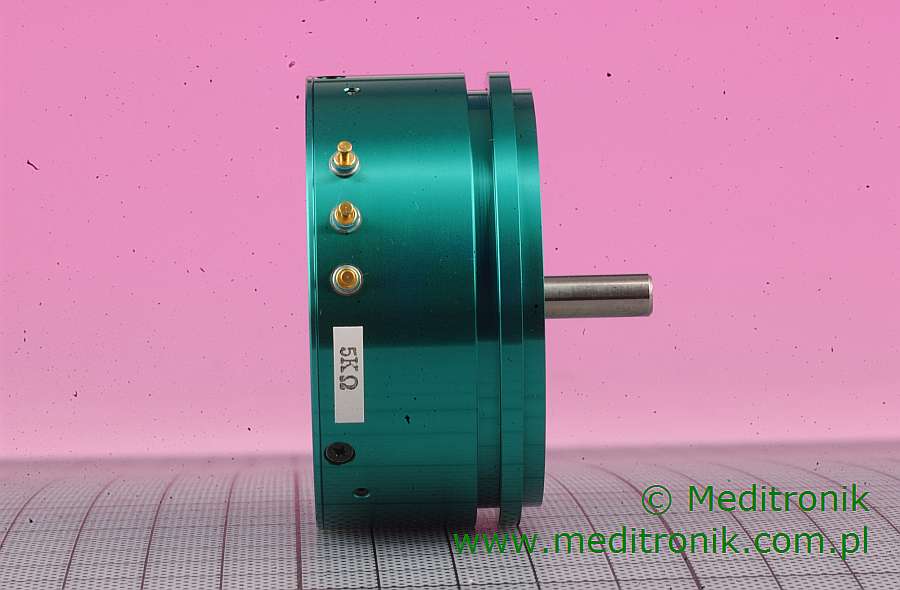

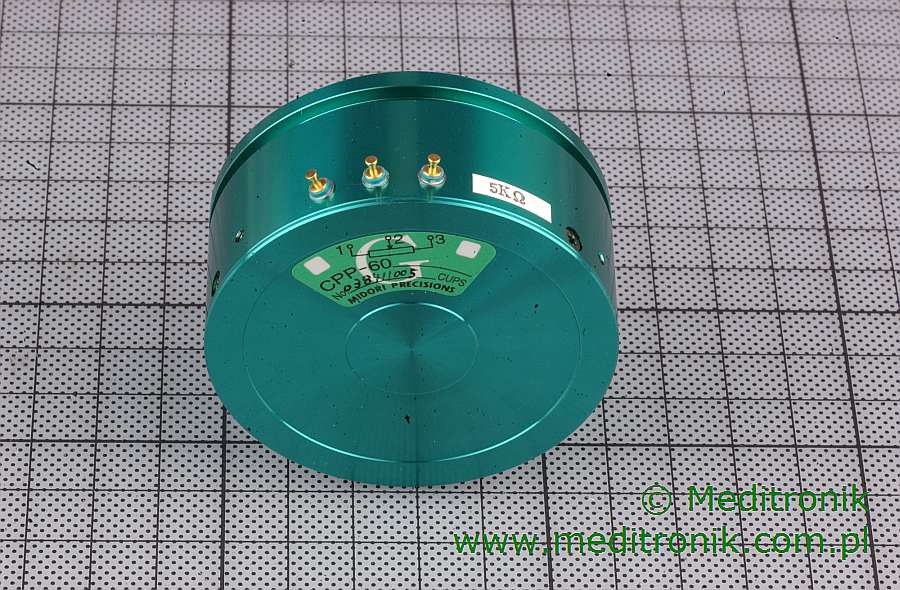

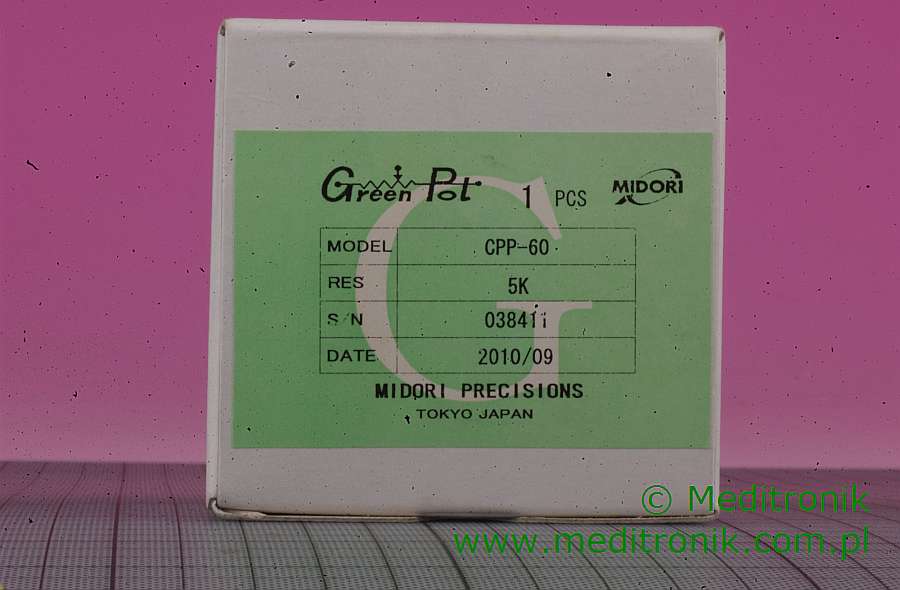

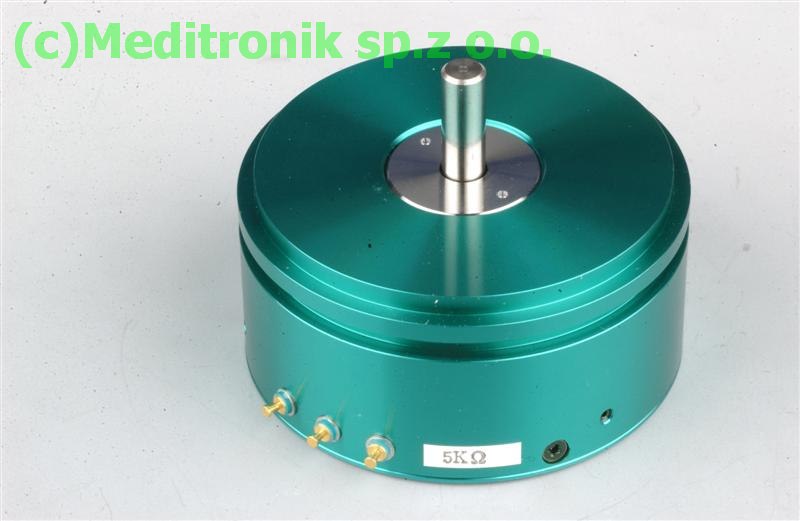

 CPP-60-5K MIDORI

PM CPP-60-5K MIDORI

Potencjometr przewodzący plastyk; Servo ?? 62mm;kąt el.340 s t; mech 360 st; 4W/70 st; 1-obrotowy; śr.62mm gł. 24,5;; oś. 6mm dł. 19mm; wyprowadzenia z boku; lin 0,05mm; tol.10% proponujemy podobne PMFCP50A z możliwością przeróbki
ZapytajZapytajZapytaj BRAKfoto foto pdf foto foto foto foto Info Zapytaj
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 125

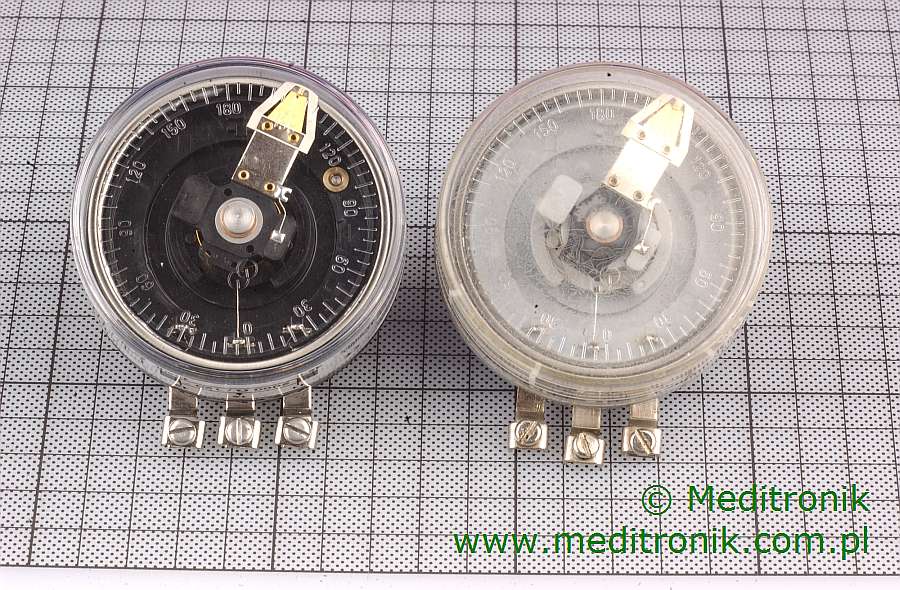

PM CP-6 MIDORI

Potencjometr drutowy mocowanie 3xM3(gł.4mm) na śr.30mm; śred nica pot.58mm,gł.25(28)mm; kołnierz gł.3mm na śr.40mm ośka 6 mm dł 15+-1mm; RS-rear shaft 6mm dł.10+-1mm; 2,5W; kąt el.35 5(350)st.mech.360 st.tol.5% lin 0,15%(0,2%);podobny PMCP50
ZapytajZapytajZapytaj BRAKpdf Info Zapytaj

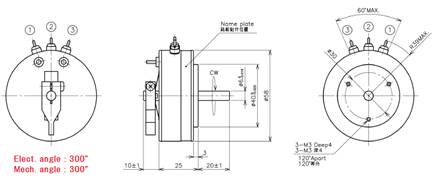

PM CP-6FP-1K MIDORI

Potencjometr drutowy mocowanie 3xM3(gł.4mm) na śr.30mm; śred nica pot.58mm,gł.25(28)mm; kołnierz gł.3mm na śr.40mm ośka 6 mm dł 15+-1mm; RS-rear shaft 6mm dł.10+-1mm; 2,5W; kąt el.30 0)st.mech.300 st.tol.5% lin 0,15%(0,2%);podobny PMCP50-*ST*
ZapytajZapytajZapytaj BRAKfoto pdf Info Zapytaj
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 1510

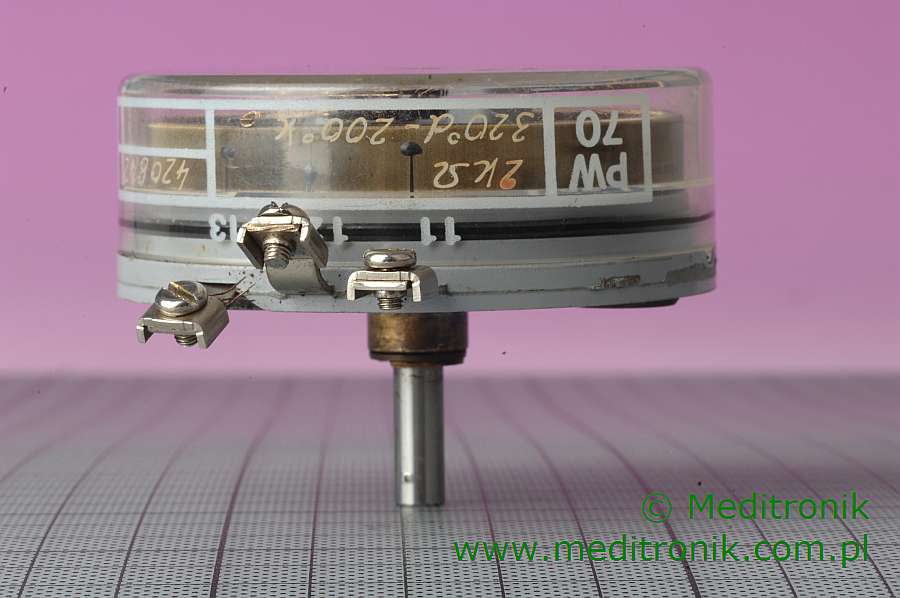

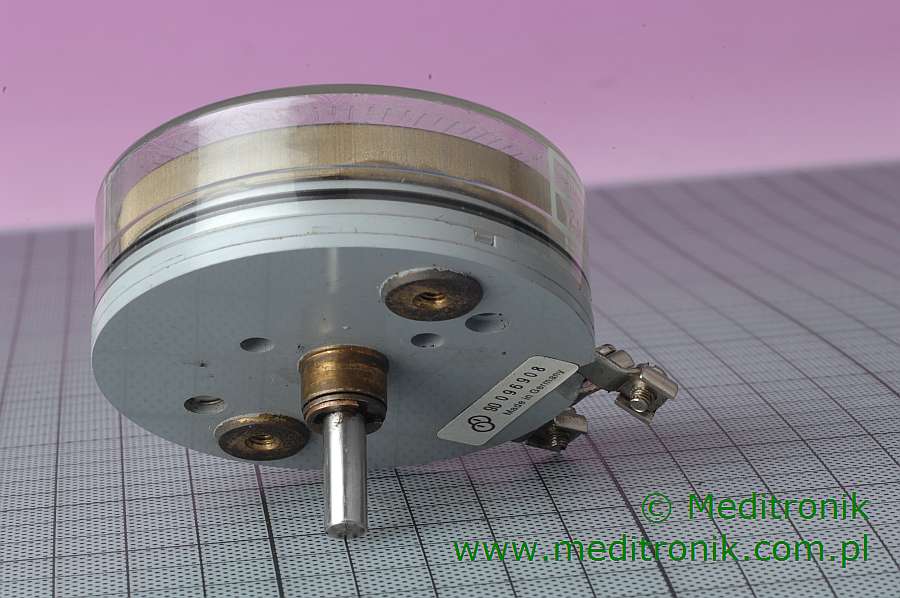

PW70A

[Potencjometr PW70A]

thank you for the inquiry. Unfortunately the information you gave me are not sufficient to identify the item. The easiest and fastest way to find the correct item would be to send me the item number (in the form XXXXXXX-XXX.XXX) or the eight-digit device/serial number. You can also send me a photo of the devices type plate(s). . On receipt of this information we shall quote you the devices which are strictly in line with your requirements. Thank you very much for your assistance! Drogi panie. Dziękuję za zapytanie. Niestety podane przez Ciebie informacje nie są wystarczające do zidentyfikowania przedmiotu. Najłatwiejszym i najszybszym sposobem na znalezienie odpowiedniego elementu jest przesłanie mi jego numeru (w formacie XXXXXXX-XXX.XXX) lub ośmiocyfrowego numeru urządzenia/seryjnego. Możesz również przesłać mi zdjęcie tabliczki znamionowej urządzenia. Po otrzymaniu tych informacji wycenimy Państwu urządzenia ściśle odpowiadające Państwa wymaganiom. Dziękuję bardzo za Twoją pomoc!
ZapytajZapytajZapytaj BRAK
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 11020
PW0045-345-1k 1511Z07-034.006

1511Z07-034.006

[PW0045-345-1k 1511Z07-034.006]

PW0045W Precision Potentiometer - Angular Position Transmitter. Potentiometer is 1k Ohms +-5% across 345 Degree movement with stops. Shaft is 6mm dia x 24mm long
ZapytajZapytajZapytaj16-18BRAK

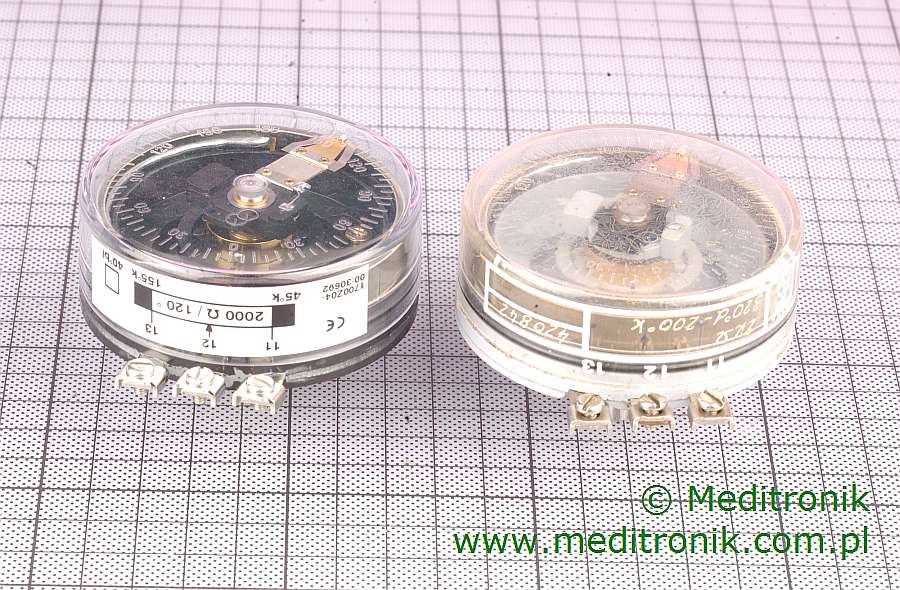

1700Z04-064.003

[PW70-350-2k 1700Z04-064.003]

PW70 Precision Potentiometer. Potentiometer is 2k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation) Shaft is 6mm x 24mm (shaft # 0001W01-00:0108) Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications. Other resistance values are available on request.
ZapytajZapytajZapytaj16-18BRAK

1577Z01-000.001

[PW620-15/Z -290-207-1577Z01-000.001]

Precision Potentiometer PW 620-15/Z mounted in casing with servo mount size 20. Rated rotary angle 290° Short-circuited at the beginning and the end 5° each resistance 200/207 U ± 5% Active angle 270/280° ( 207 ohm ) Shaft 6 mm O free length 7 mm on 6 mm length on 1,4 mm O turned off with central ring to adapt the mounting of the FW40 (54 mm O) shaft. Circle O 60 mm for clamp fastening Torque 3 10 cmp and 3 0,1 Ncm
ZapytajZapytajZapytaj16-18BRAK

1700Z04-192.006

[PW70-100-1K-1700Z04-192.006]

PW70 Precision Potentiometer. Resistance: 1k Ohms ± 1% relating to 100°. Winding Angle: 122° Symmetrical Stops: at 120° -2°. Tappings: Initial and final tappings symmetrical at 100°. Connections: with soldered connection. Shaft: LF1 = 6mm Diameter x 20mm long, LF2 = 6,5 mm with slot for screwdriver. Shaft: number 0001W01-00:5302. Socket Colour: Black (grey is nonger available). Weight: 0.15kg. Drawing Number: 1-4736 (formerly N179-15).
ZapytajZapytajZapytaj16-18BRAK

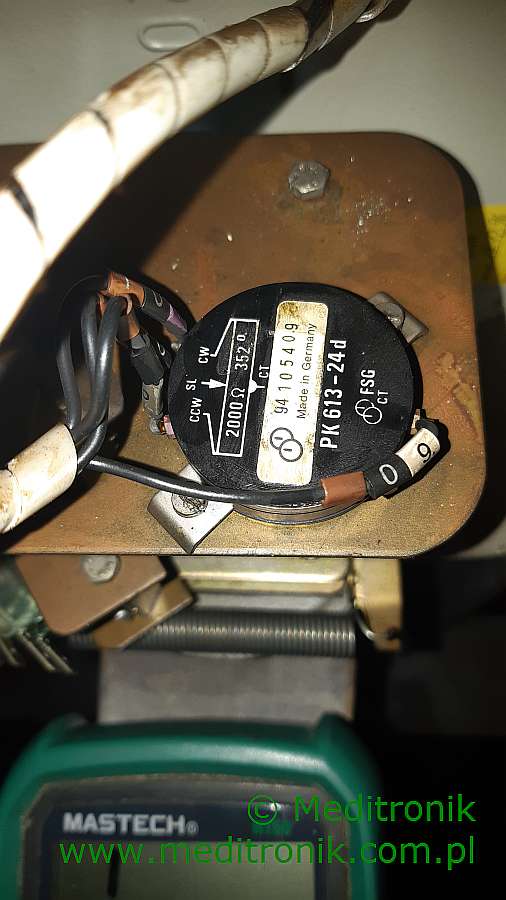

1565Z02-003.104

[PK613-24d-352-2k- 1565Z02-003.104]

Precision Plastic Potentiometer PK613-24d Resistance element ref 36474 Drawng 2485-1113-0300 order # 0325..PK Wiper: Rotation without limit stops. Resistance: 2k? +/- 10%/ over 352° with center tapping.
ZapytajZapytajZapytaj16-18BRAK

1700Z04-065.039

[PW70d-350-2k-1700Z04-065.039]

W70DPrecision Potentiometer in cast iron case to IP40 enclosure rating. Potentiometer is 2k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation) ( Brak - Centre tapping, Wiper pressure 15-18 p. ???? ) Size Depth 27.5mm excluding the 24mm Shaft is 6mm x 24mm (shaft # 0001W01-00:0108) Fixing 2 X M4 (5mm deep) Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications. Other resistance values are available on request. Manufacturers part number is 1700Z04-065.039 Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKpdf pdf pdf

1575Z12-005.002

[PK620-16d -40-1K-1575Z12-005.002]

Precision Plastic Potentiometer PK620-16d in synchro casing of size 20 With resistance element SD Wiper: Continuous rotation without limit stops. Resistance: 1 k Ohms +- 10% Active angle: I 355° Shaft: 6mm dia x 24 mm long Customs tariff code: 85334010
ZapytajZapytajZapytaj16-18BRAK

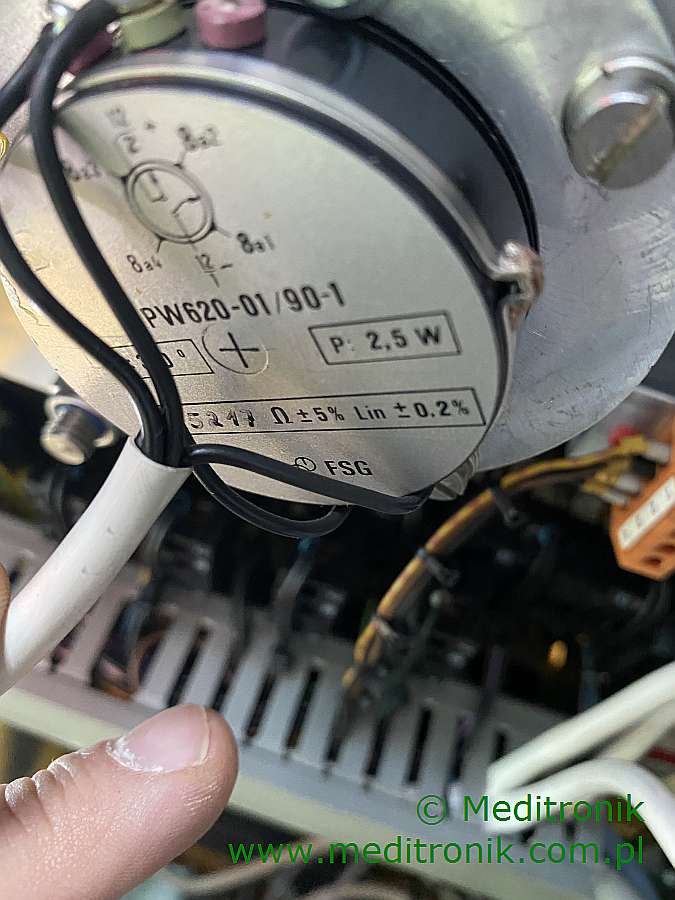

PW620-15D-280-1037-1577Z01-001.003

1577Z01-001.003

[PW620-15D-280-1037-1577Z01-001.003]

Precision Potentiometer PW 620-15d mounted in casing with servo mount size 20. Rated rotary angle 290° Rotatable without limit stops Short-circuited at the beginning and the end 5° each resistance 1000/1037 U ± 5% Active angle 270/280° Shaft 6 mm O 14 mm long Torque 3 10 cmp and 3 0,1 Ncm 1577Z01-001.003 Precision Angular Position Transmitter PW620-15d servo size 20 rated rotary angle 290° rotatable without limit stops short-circuited at the beginning and the end 5° each resistance 1000/1037 U ± 5% active angle 270/280° see also drawing FED-3548 shaft 6 mm Ý 14 mm long torque 3 10 cmp and 3 0,1 Ncm Uwaga: zdjęcie podobnego
ZapytajZapytajZapytaj16-18BRAK

1122Z01-001.022

[PW611-15d-345-1k-1122Z01-001.022]

Precision Angular Position Transmitter PW611-15d servo size 11 wiper rotates only in not-energized condition nominal rotary angle 345° resistance 1 kU ± 5% / 345° shaft 6 mm Ý, 14 mm long Customs tariff code: 85 33 31 00
ZapytajZapytajZapytaj16-18BRAK

1570Z80-257.001

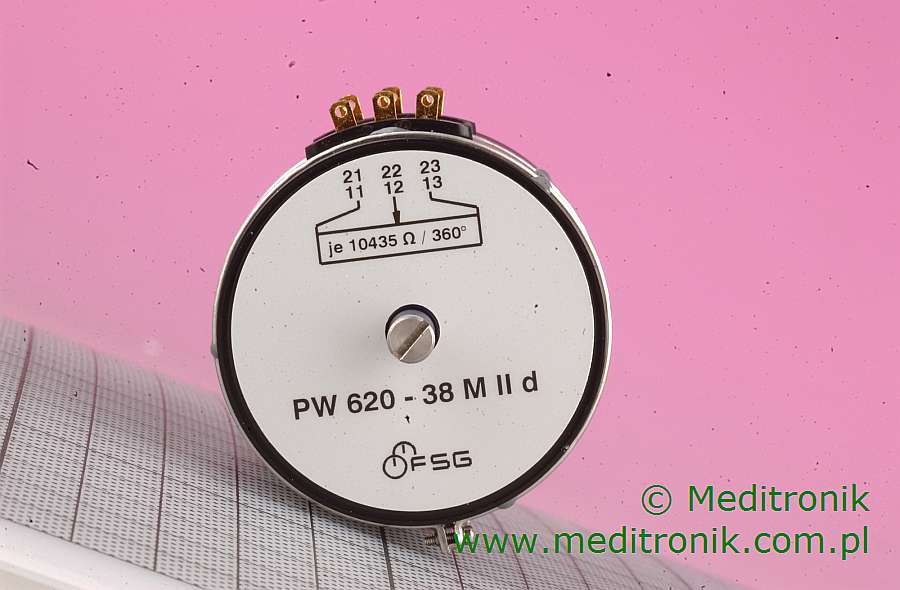

[PW620-41d-300-10435-1570Z80-257.001]

recision Potentiometer PW 620-41d mounted in casing with servo mount size 20. Winding angle: 360° Without Reactive winding, circuit 501 Wiper: continuous rotation without limit stops. Resistance: 10,435 kU ± 1% / 300° Plug type connection Faston Short model Shaft 6mm Diameter x 24mm long with slot for screwdriver. torque 3 10 cmp and 3 0,1 Ncm respectively. Net weight approx 0.09kg Customs tariff code: 85 33 31 00
ZapytajZapytajZapytaj16-18BRAK

1575Z51-001.001

[PK620-25d-40-1k-1575Z51-001.001]

Precision Plastic Potentiometer PK620-25d in flange casing servo mount size 20 Temperature range max; 120°C with resistance element. Wiper: Continuous rotation without limit stops and with metal wiper base. Resistance: 1 k Ohms +- 10%/ over 40° Active angle: 40° Shaft: 6mm dia x 24 mm long Including mounted terminal strip for mounting in A casing Customs tariff code: 85 33 31 00
ZapytajZapytajZapytaj16-18BRAK
PK613-02d-352-5k-1526S11-001.001

1526S11-001.001

[PK613-02d-352-5k-1526S11-001.001]

Precision Plastic Potentiometer PK613-02d in flange casing servo mount size 13 Wiper: Rotation without limit stops. Resistance: 5 k Ohms +- 20%/ over 352° with centre tapping Shaft: 6mm dia x 14 mm long
ZapytajZapytajZapytaj16-18BRAKpdf

1708Z03-096-005

[PW70A-350-1K-1708Z03-096-005]

Precision Angular Position Transmitter in cast iron case to IP40. Potentiometer is 1k Ohms +-2% across 350 Degree movement with stops and protected by a slipping clutch. Enclosure Rating is IP40 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used for dancer bar/dancing roller and any high performance/high reliability rotary position sensing applications. Other resistance values are available on request. Part number is 1708Z03-096.005 ( including PW 1700Z04-096.001) Customs Tariff code: 85 33 31 000 Potentiometer PW70A, Cast Iron IP40 Case, 350° Degree Movement x 1k Ohms
ZapytajZapytajZapytaj16-18BRAK

1570Z60-001.007

[PW620-24D-300-1k-1570Z60-001.007]

Precision Potentiometer PW 620-24d mounted in casing with servo mount size 20. Winding angle: 360° Reactive winding: 60° Wiper: continuous rotation without limit stops. Resistance: 1 k Ohms ± 2% / 300° Sense of rotation: Left White metal wiper bearing helix/helix Shaft 6mm Diameter x length from support 24 mm Max. range of temperature +120°C To be mounted in GS150 Casing Customs tariff code: 85 33 31 00
ZapytajZapytajZapytaj16-18BRAK

1565Z51-000.015

[PK613-15-348-5K- 1565Z51-000.015]

Precision Plastic Potentiometer PK613-15 in flange casing servo mount size 13 With Limit stops at approx 348° Resistance: 5 k Ohms +- 10%/ over 325° with centre tapping. Manufacturers part number is PK613-15 1565Z51-000.015 (PK-613-15 1565Z51000015) Customs tariff code: 85 33 40 10
ZapytajZapytajZapytaj16-18BRAK
PW70A-60-8,57K-1708Z03-096.018

1708Z03-096.018

[PW70A-60-8,57K-1708Z03-096.018]

PW70A Precision Potentiometer in cast iron case to IP40. Potentiometer is 8.57k Ohms +-1% across the 60 Degree movement, without gears and includes a slipping clutch for mechanical protection. 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used on FAS Packaging Machinery and any high performace dancer bar or dancing roller applications. Other resistance values are available on request. Customs Tariff code: 85 33 31 000 Potencjometr 1700Z04-096.038 Patrz też model PW70A/IP40/60-8.57-1708Z03-096.018
ZapytajZapytajZapytaj w drodzepdf
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 125
PW70A/IP40/60-8.57-1708Z03-096.018

PW70A/IP40/60-8.57-1708Z03-096.018

PW70A Precision Potentiometer in cast iron case to IP40. Potentiometer is 8.57k Ohms +-1% across the 60 Degree movement, without gears and includes a slipping clutch for mechanical protection. 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used on FAS Packaging Machinery and any high performace dancer bar or dancing roller applications. Other resistance values are available on request. Customs Tariff code: 85 33 31 000 Potencjometr 1700Z04-096.038 Patrz też model PW70A-60-8,57K-1708Z03-096.018 Precision Potentiometer PW70A in cast casing IP40 (with PW 1700Z04-096.038) R = 8,57 kU +- 1%/60° stops shaft 6 mm Ý Lf1 = 16 with slipping clutch according to dimensional sketch 1708Z03-096M018
ZapytajZapytajZapytaj16-18BRAK

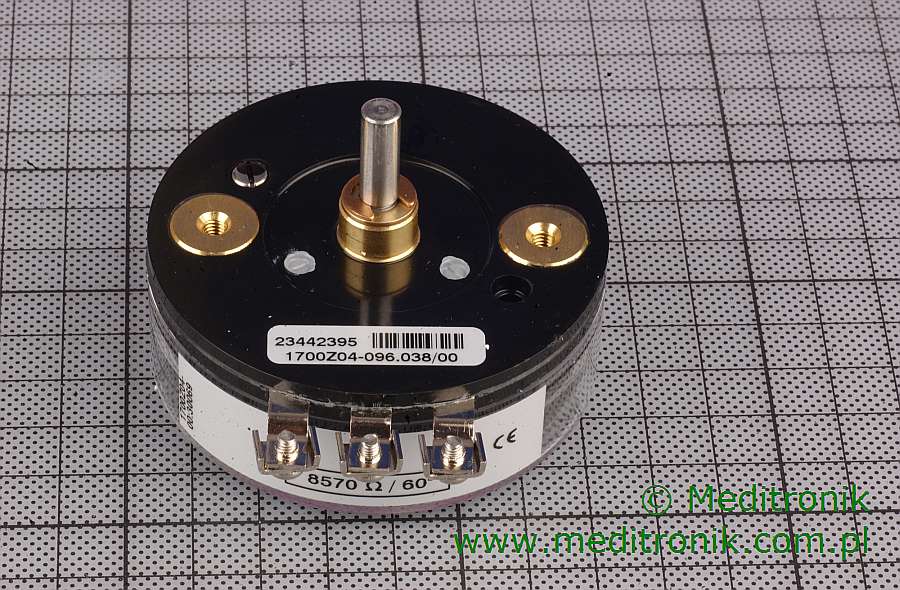

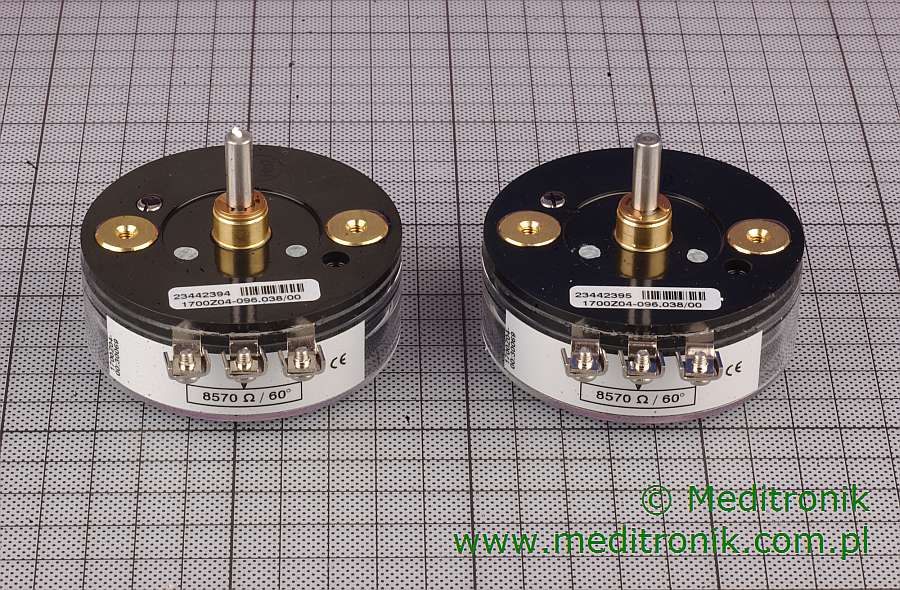

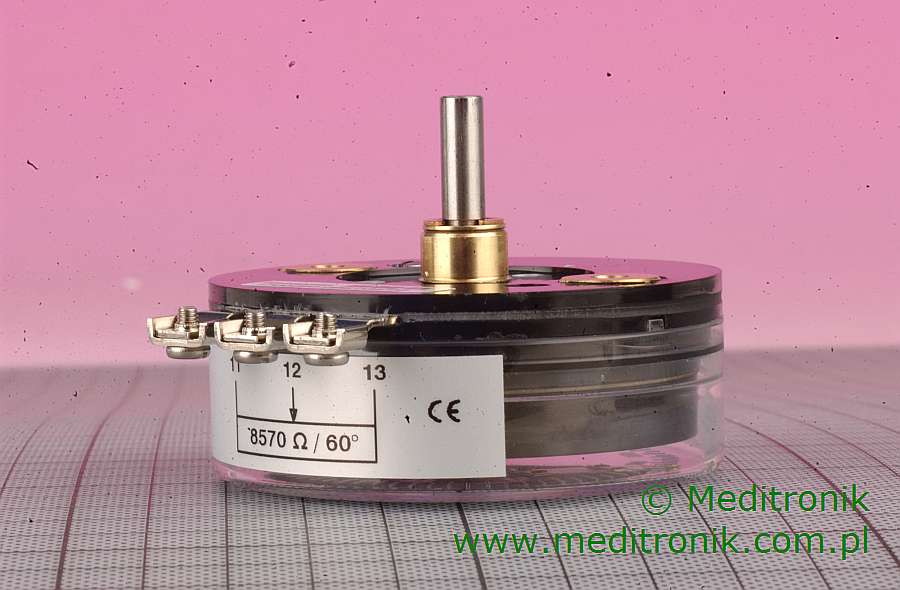

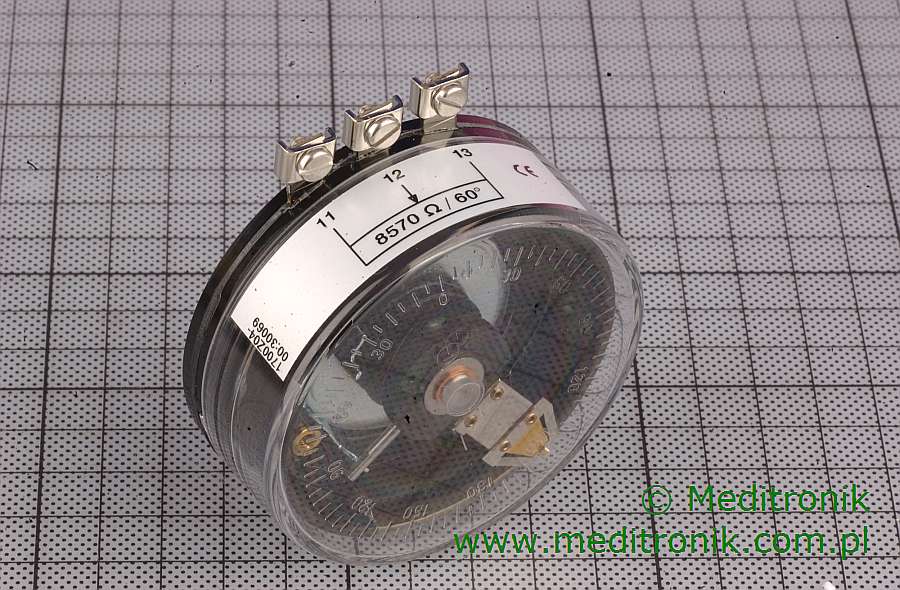

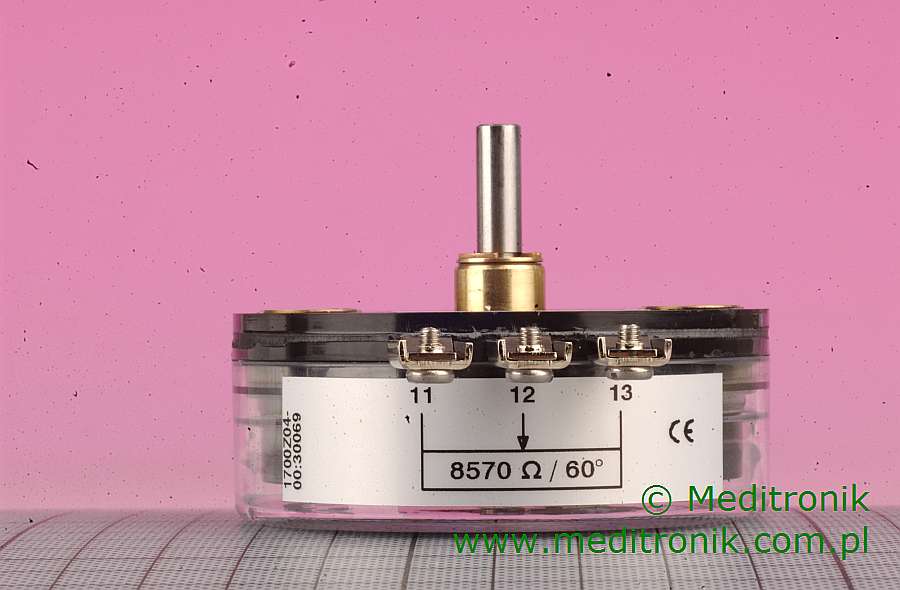

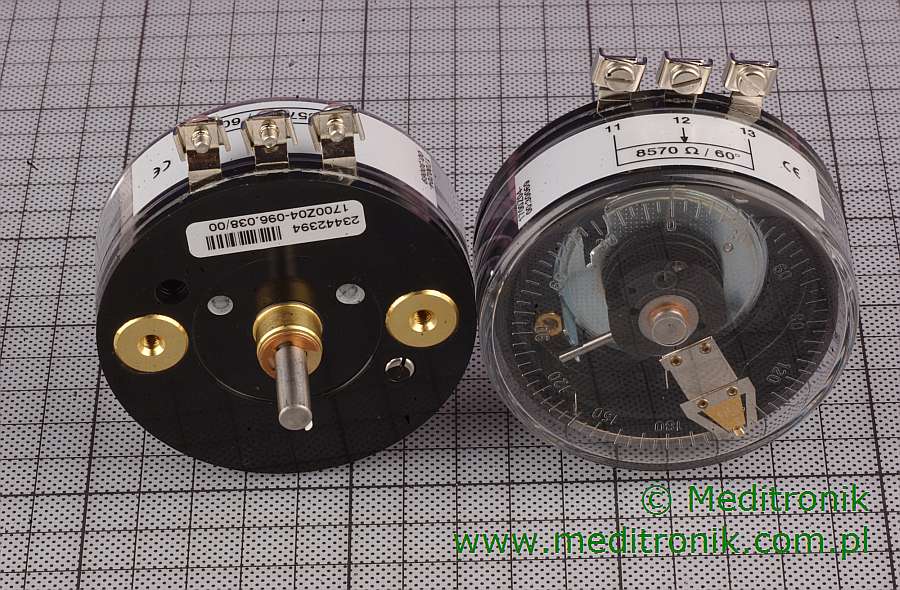

PW70RK-60-8570-1700z04-096.038

1700z04-096.038

[PW70RK-60-8570-1700z04-096.038]

Precision Angular Position Transmitter PW70-RK resistance 8,57 kohm ± 1%/60° stops shaft 6 mm , 24 mm long from support shaft # 0001W01-0R:0108 with added slipping clutch wersja w obudowie PW70A IP40 PW70A/IP40/60-8,57K-1708z02-096.018 + pw1700Z04-096.038
ZapytajZapytajZapytaj w drodzefoto foto foto foto foto pdf
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 1510
PW70A/IP40/60-8,57K-1708z03-096.018 + pw1700Z04-096.038

1708z02-096.018

[PW70A/IP40/60-8,57K-1708z03-096.018 + pw1700Z04-096.038]

Uwaga: powinno być: PW70A/IP40/60-8,57K-1708z03-096.018 + pw1700Z04-096.038 a nie PW70A/IP40/60-8,57K-1708z02-096.018 + pw1700Z04-096.038 Precision Potentiometer PW70A in cast casing IP40 (with PW 1700Z04-096.038) R = 8,57 kU +- 1%/60° stops shaft 6 mm Ý Lf1 = 16 with slipping clutch according to dimensional sketch 1708Z03-096M018D w środku jest potencjometr PW1700Z04-096.038 PW70RK-60-8570-1700z04-096.038
ZapytajZapytajZapytaj w drodzepdf
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 11020
PW70/A/IP40-350-2.2K-1708Z03-096.063

1708Z03-096.063

[PW70/A/IP40-350-2.2K-1708Z03-096.063]

Potentiometer IP40 - 340 degree movement x 2.2k Ohms PW 70/A/IP 40, 350°, 2.2 K ohm (1708Z03-096.063) PW70A Precision Potentiometer to IP40. Potentiometer is 2.2k Ohms +-1% across the 340 Degree movement. Part number is 1708Z03-096.063 Other resistance values are available on request. Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAK
PW70A-60-10K-1708Z03-096.014

PW70A-60-10K-1708Z03-096.014

Potentiometer in Cast Iron IP40 Case - 60 degree Gear-less movement x 10k Ohms PW70A Precision Potentiometer in cast iron case to IP40. Potentiometer is 10k Ohms +-1% across the 60 Degree movement, without gears and includes a slipping clutch for mechanical protection. 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used on FAS Packaging Machinery and any high performace dancer bar or dancing roller applications. Other resistance values are available on request. Customs Tariff code: 85 33 31 000 Part Code: 1708Z03-096.014 recision potentiometer PW70A in cast casing IP40 with PW1700Z04-096.014 R = 10 kohm+-1% / 60 deg stops shaft 6,00 mm fi Lf1 = 16 mm with sliping clutch
ZapytajZapytajZapytaj16-18BRAK
PW70A/IP40/-350-2K-1708Z03-096.009

1708Z03-096.009

[PW70A/IP40/-350-2K-1708Z03-096.009]

Potentiometer in Cast Iron IP40 Case - 350 degree Movement x 2k Ohms with Stops & Clutch PW70A Precision Potentiometer in cast iron case to IP40. Potentiometer is 2k Ohms +-1% across the 350 Degree movement with mechanical stop and includes a slipping clutch for mechanical protection. 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Manufacturers part number 1708Z03-096.009 Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAK

1700Z04-256.006

[PW70F-204-140-1700Z04-256.006]

Fernsteuergate Potentiometer PW70F PW70F Precision Potentiometer. Precision Potentiometer PW70 F with oil filling, with metal cap winding angle 204° stops 0° - 19°: short circuit section 19° -101,2°: 70 ohm +/- 1% /82,2° 101,2°-120,8°: shorted & tapped. 120,8°-203°: 70 Ohm +/- 1% /82,2° 203°-204°: shorted shaft 6 mm Ý 13,5mm long from support shaft # 0001W01-00:0102 sense of rotation: right (view from shaftside) with sintered bearing torque: max. 100 cmp Weight: 0,200 KG
ZapytajZapytajZapytaj15-17BRAK

1570Z80-257.100

[PW620-41D)-300-10435-150Z80-257.100]

Potentiometer - 360° movement - PW620-41D Precision Potentiometer PW 620-41d mounted in casing with servo mount size 20. Winding angle: 360° Without Reactive winding, circuit 501 Wiper: continuous rotation without limit stops. Resistance: 10,435 kU ± 1% / 300° Plug type connection Faston Short model Shaft 6mm Diameter x 24mm long with slot for screwdriver. torque 3 10 cmp and 3 0,1 Ncm respectively. Net weight approx 0.09kg Customs tariff code: 85 33 31 00
ZapytajZapytajZapytaj16-18BRAK

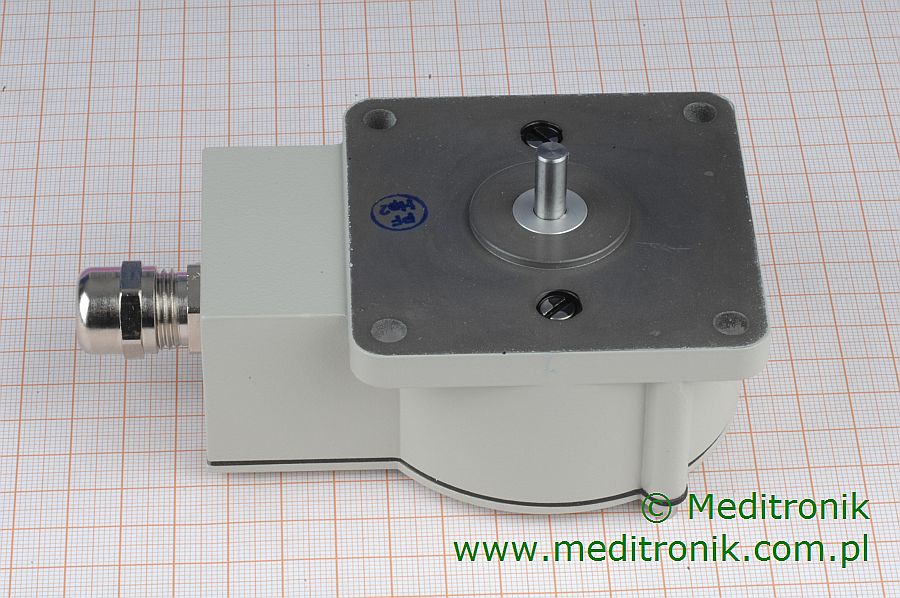

PW70A/IP40/350-5K-1708Z03-096.010

1708Z03-096.010

[PW70A/IP40/350-5K-1708Z03-096.010]

Potentiometer in Cast Iron IP40 Case - 350 Degree Movement x 5k Ohms - PW70 With Stops and Slipping Clutch PW70 Precision Potentiometer in cast iron case to IP40 enclosure rating. With slipping clutch and stops Precision Angular Position Transmitter Potentiometer is 5k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation). 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Other resistance values are available on request. Manufacturers part number is 1708Z03-096.010 Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAK
PW70A/IP40/350-5k-1708Z03-096.079

1708Z03-096.079

[PW70A/IP40/350-5k-1708Z03-096.079]

Precision Potentiometer in Cast Iron IP40 Case - 5k Ohms 350 deg stops 1708Z03-096.079 (1708Z03-096.079 + PW 1700Z04-096.064 PW70A Precision Potentiometer in cast iron case to IP40 1708Z03-096.079 (with PW 1700Z04-096.064). Potentiometer is 5K Ohms +/-1% 350o Stops. 125mm x 76mm x 39mm overall. (excluding shaft) 16 mm long from support of A-casing with slipping clutch according to dimensional sketch1708Z03-096M079D Scope of delivery without setting key. Fixing flange has 4 x 6mm dia smooth holes on 62 x 62mm. Manufacturers part number is 1708Z03-096.079 Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKpdf

1700Z04-256.004

[PW70F-350-70-1700Z04-256.004]

Fernsteuergate Potentiometer PW70F PW70F Precision Potentiometer. Potentiometer is 70 Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation) Housing diameter is 70mm. IP rating of housinh: IP30 Shaft is 6mm diameter. Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications. Other resistance values are available on request.
ZapytajZapytajZapytaj16-18BRAK

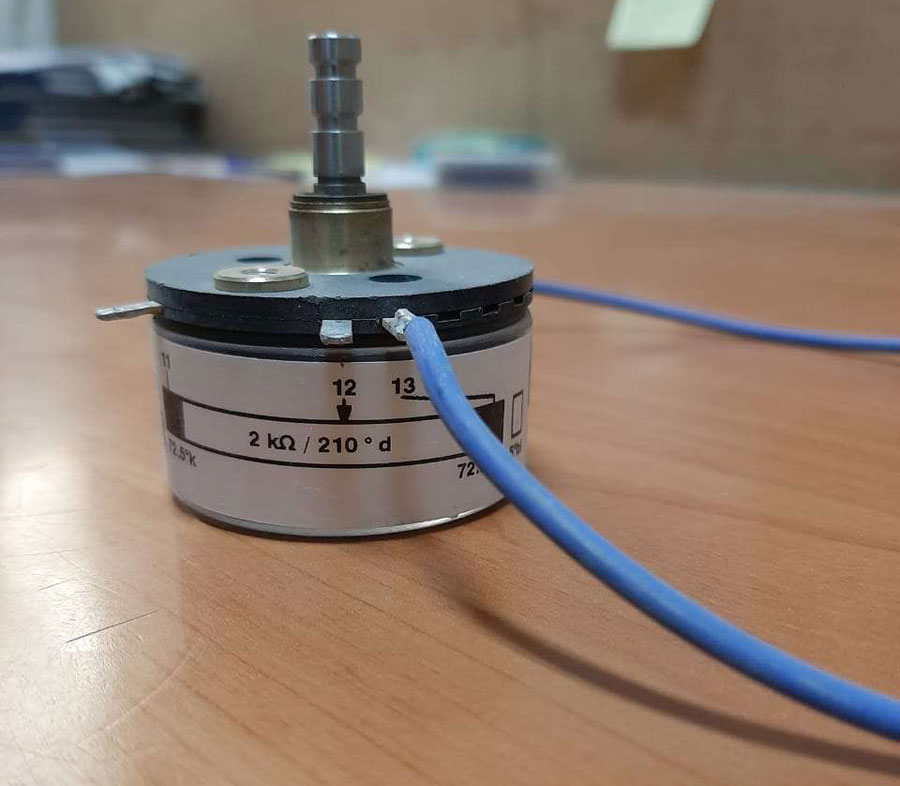

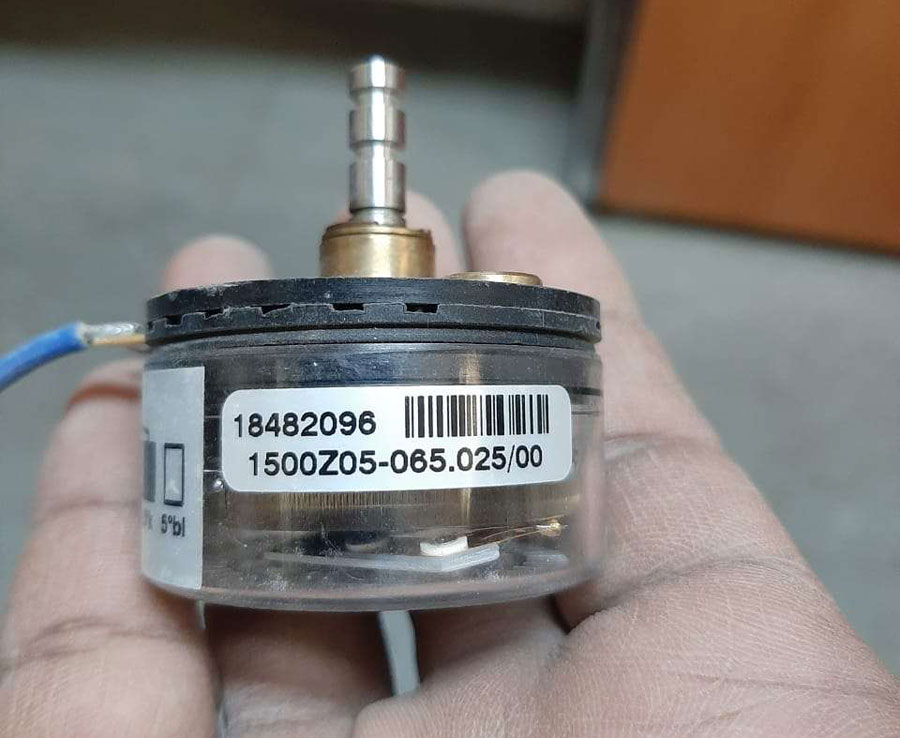

PW45d -210-2K-1500Z05-065.025

1500Z05-065.025

[PW45d -210-2K-1500Z05-065.025]

Precision Potentiometer PW45d 360 Deg 2Kohm PW45d Precision Potentiometer. Potentiometer is 2 K? (kOhms) +/-1% Winding angle 360° Wiper rotatable without limit stops Blind winding 5° Short circuit section at beginning and end 72.5° each Resistance 2 Kohm ± 1% Active angle 210° With needle bearing Shaft O 6 mm Length from support 24mm Nett weight is 0.07kg
ZapytajZapytajZapytaj24-26BRAKfoto foto
PW70/A/IP40-35-5K-1708Z03-096.078

1708Z03-096.078

[PW70/A/IP40-35-5K-1708Z03-096.078]

Precision Potentiometer in Cast Iron IP40 Case - 5k Ohms 35 deg stops 1708Z03-096.078 (1708Z03-096.078 with PW 1700Z04-096.063) PW70A Precision Potentiometer in cast iron case to IP40(with PW 1700Z04-096.063). Potentiometer is 5K Ohms +/-1%/35o Stops. 125mm x 76mm x 39mm overall. Shaft is 6mm x 16mm with slip clutch (adjusting spanner not included) Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd.
ZapytajZapytajZapytaj16-18BRAKpdf Na życzenie
PW70/A/IP40-40-5K-1708Z03-096.086

1708Z03-096.086

[PW70/A/IP40-40-5K-1708Z03-096.086]

Precision Potentiometer in Cast Iron IP40 Case - 5k Ohms 40 deg stops PW70A Precision Potentiometer in cast iron case to IP40 (with PW 1700Z04-096.114). Potentiometer is 5K Ohms +/-1%/40 deg Stops. Shaft is 6mm x 16mm with slip clutch (adjusting spanner not included) Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd.
ZapytajZapytajZapytaj BRAKpdf

1565Z51-265.016

[PK613-15-RK-311,5-5K-1565Z51-265.016]

Potentiometer - 311.5° movement x 5k Ohms - PK613-15-RK 1565Z51-265.016 (PK613-15-RK) Precision Plastic Potentiometer PK613-15-RK With Limit stops at approx TBA° Resistance: 5 k Ohms +- 10%/ over 15° to 326.5.° Mounting at SL according to Zg.5946Z.with mounted slipping clutch. Correspond to drawing number 5946Z01-55:00 Weight 0.06kg
ZapytajZapytajZapytaj16-18BRAKpdf
PW70/A/IP40-350-4,7K-1708Z03-096.012

1708Z03-096.012

[PW70/A/IP40-350-4,7K-1708Z03-096.012]

Potentiometer in Cast Iron IP40 Case - 350 Degree Movement x 4.7k Ohms - PW70 With Stops and Slipping Clutch PW70A Precision Potentiometer in cast iron case to IP40 enclosure rating. With slipping clutch and stops Precision Angular Position Transmitter Potentiometer is 4.7k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation). 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd.
ZapytajZapytajZapytaj BRAKpdf
PW70/A/IP40-350-10K-1708Z03-065.009

1708Z03-065.009

[PW70/A/IP40-350-10K-1708Z03-065.009]

Potentiometer in Cast Iron IP40 Case - 350 Degree Movement x 10k Ohms - PW70d/A 1708Z03-065.009 PW70d/A Precision Potentiometer in cast iron case to IP40 enclosure rating. Potentiometer is 10k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation). 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications.
ZapytajZapytajZapytaj16-18BRAKpdf
PW70/A/IP65/-60-1714-1708Z03-352.010

1708Z03-352.010

[PW70/A/IP65/-60-1714-1708Z03-352.010]

Potentiometer in Cast Iron IP65 Case - 60 Degree Movement x 1714 Ohms 1708Z03-352.010 PW70A Precision Potentiometer in cast iron case to IP65 enclosure rating. Potentiometer is 1714 Ohms +-1% across 60 Degree movement. Shaft is 6mm x 16mm Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications. Other resistance values are available on request. Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKpdf

1700Z04-257.008

[PW70d-140-2x2K-1700Z04-257.008]

Precision Angular Position Potentiometer 2 x 2k Ohms over 140° in 360°Movement - PW70d 1700Z04-257.008 1700Z04-257.008 Precision Angular Position Transmitter PW70d Oil-filled, with metal cap Version according to 1700Z04-257M008E Winding 360° Wiper rotatable without limit stops Two shorted sections, opposite,30° and 50°, tapped centre 50° shorted, marked on socket. Resistance value 2Kohms ± 2% on each 140° shaft Ý 6 mm, With slot in direction wiper Length from support 24 mm Manufacturer is FSG Full part number is 1700Z04-257.008 Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAK
PW70D/A/IP40-350-5K-1708Z03-065.008

1708Z03-065.008

[PW70D/A/IP40-350-5K-1708Z03-065.008]

Potentiometer in Cast Iron IP40 Case - 350 Degree Movement x 5k Ohms - PW70d/A 1708Z03-065.008 PW70d/A Precision Potentiometer in cast iron case to IP40 enclosure rating. Potentiometer is 5k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation). 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications.
ZapytajZapytajZapytaj16-18BRAKpdf
PW70/A/IP40-180-5K-1708Z03-096.013

1708Z03-096.013

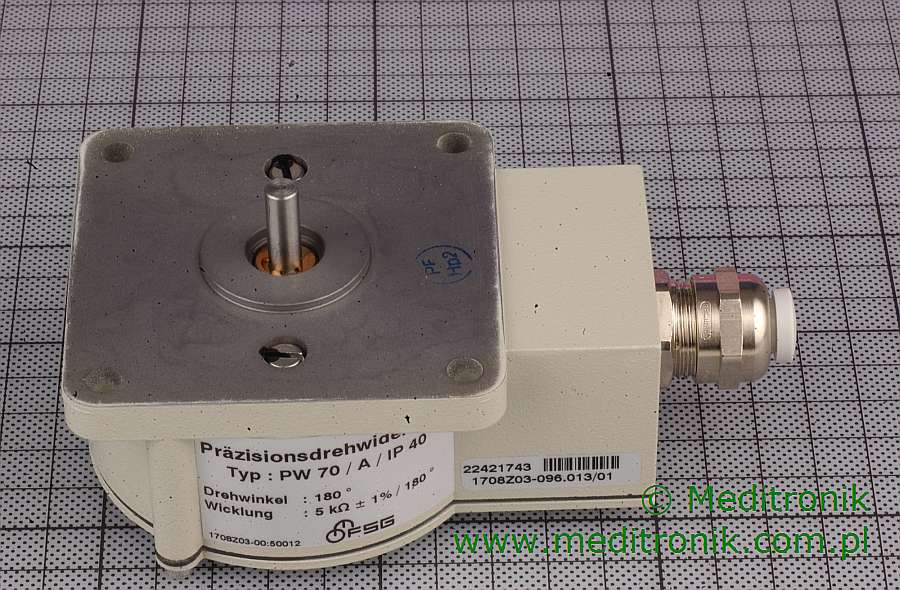

[PW70/A/IP40-180-5K-1708Z03-096.013]

Precision Angular Position Transmitter, Cast Iron IP40 Case - 180 degree movement x 5k Ohms 1708Z03-096.013 PW70A Precision Angular Position Transmitter in cast iron case to IP40. Potentiometer is 5k Ohms +-1% across the 180 Degree movement, including a slipping clutch for mechanical protection. Approximate overall dimensions: 125mm x 75mm x 60mm overall. Shaft is 6mm diameter x 16mm long Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Weight: 0.44Kg Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj BRAKNa życzenie
PW70/A/IP40-60-1714-1708Z03-096.011

1708Z03-096.011

[PW70/A/IP40-60-1714-1708Z03-096.011]

PW70A Precision Angular Position Transmitter 1708Z03-096.011 PW70A Precision Potentiometer in cast iron case to IP40. Precision Angular Position Transmitter PW70A in cast casing IP40 (with PW 1700Z04-096.002) Winding: 1714 Ohm +- 1%/60° stops shaft 6 mm with slipping clutch. Weight: 0.45kg. Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj BRAKpdf

1700Z04-096.002

[PW70-60-1714-1700Z04-096.002]

Potencjometr z PW70/A/IP40-60-1714-1708Z03-096.011
ZapytajZapytajZapytaj BRAK
PW70/A/IP40-330-10k-1708Z03-096.088

1708Z03-096.088

[PW70/A/IP40-330-10k-1708Z03-096.088]

Precision Potentiometer in Cast Iron IP40 Case - 10k Ohms 330 deg stops 1708Z03-096.088 PW70A Precision Potentiometer in cast iron case to IP40 (with PW 1700Z04-096.118). Potentiometer is 10K Ohms +/-1%/330 Stops. Shaft is 6mm x 16mm with slipping clutch. Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd.
ZapytajZapytajZapytaj16-18BRAKpdf

1700Z04-096.118

[PW70-330-10k-1700Z04-096.118]

Potencjometr z PW70/A/IP40-330-10k-1708Z03-096.088
ZapytajZapytajZapytaj16-18BRAK

1566Z01-001.005

[PK613MIId-15-352-2x2K-1566Z01-001.005]

Potentiometer - 352° movement x 2k Ohms x 2 - PK613MIId-15 1566Z01-001.005 (PK613MIId-15) Precision Plastic Potentiometer PK613-15 in flange casing servo mount size 13 PK613MIId-15in flange casing size 13 wiper continious rotation without limit stops with resistance element SD R1 = 2 k? ± 10%/352° R2 = 2 k? ± 10%/352° each with center tapping shaft 6 mm O 14 mm long
ZapytajZapytajZapytaj10-12BRAK

1710Z03-002.001

[PW70MII-35-2x2K-1710Z03-002.001]

Potentiometer PW70MII - 350 Degree Movement 2x 5k Ohms with limits 1710Z03-002.001 (PW70MII PW70MII Precision Potentiometer. Potentiometer is 2 x 5k Ohms +/-2% across 350 Degree movement. 80mm diameter x 70mm deep excluding the shaft. Shaft is 6mm x 24mm Fixing flange has 4 x M4 threaded holes on 50mm pcd.
ZapytajZapytajZapytaj BRAK

1570Z02-009.003

[PW620/180-18d-2x180-8k/2k-1570Z02-009.003]

Potentiometer - 2 x 180° movement x 8k/2k Ohms in Servo Case PW620/180-18d (1570Z02-009.003) PW620 Precision Potentiometer. Precision Angular Position Transmitter PW620/180-18d in servo casing size 20, with 2 tappings of 180° and 2 wipers of 90°. Resistance: approx. 8000 Ohms cross resistance 2000 Ohms. Shaft: 6 mm diameter x 14 mm long. Torque: 3 10 cmp or 3 0,1 Ncm. Weight: 0,070 KG Part Number: PW620/180-18d.
ZapytajZapytajZapytaj BRAK

1708Z03-096.052

[PW40/A/IP40-40-5,7k- 1708Z03-096.052]

Precision Potentiometer in Cast Iron IP40 Case - 5k7 Ohms 40 deg stops 1708Z03-096.052 (1708Z03-096.052 with PW 1700Z04-096.033) PW70A Precision Potentiometer in cast iron case version A to IP40(with PW 1700Z04-096.033). Potentiometer is 5K7 Ohms +/-2% 40 °CStops. 125mm x 76mm x 39mm overall. Shaft is 6mm x 16mm with slip clutch (adjusting spanner not included) Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd.
ZapytajZapytajZapytaj BRAKpdf

1700Z04-096.033

[PW70-40-5,7K-PW 1700Z04-096.033]

Potencjometr z PW40/A/IP40-40-5,7k- 1708Z03-096.052
ZapytajZapytajZapytaj16-18BRAK

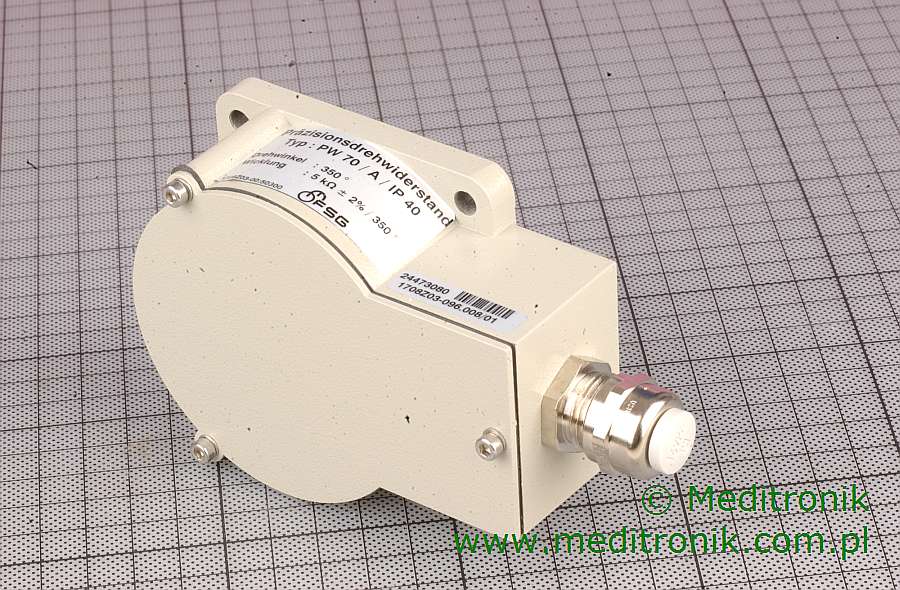

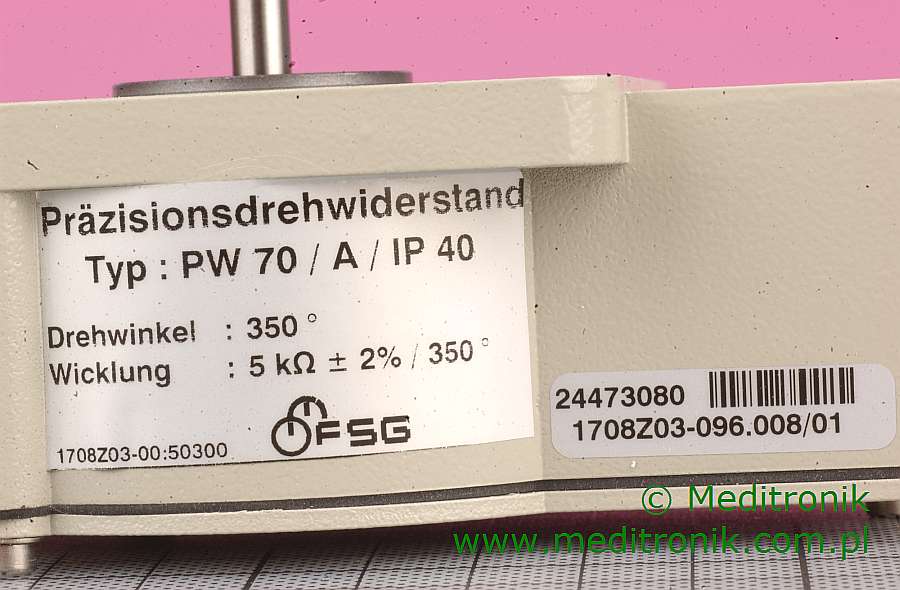

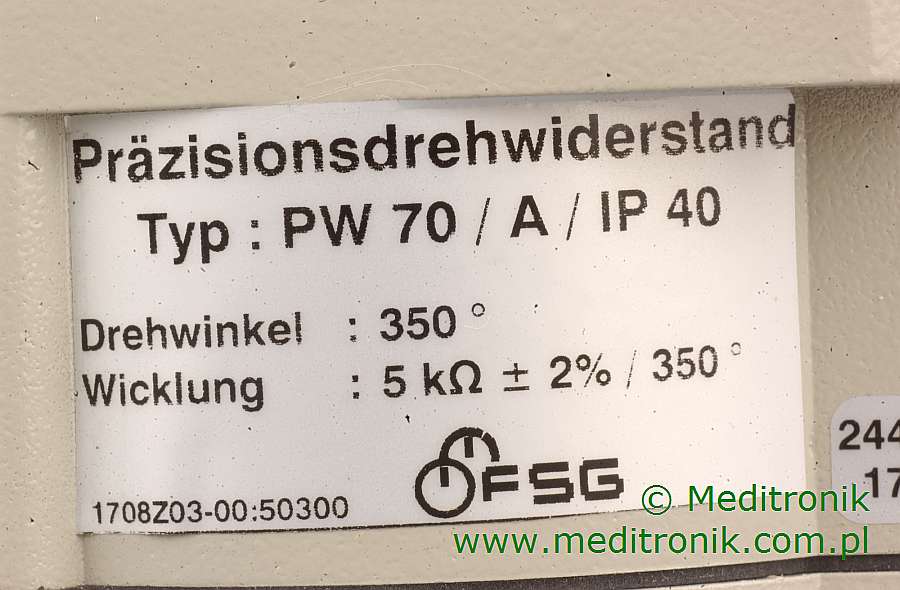

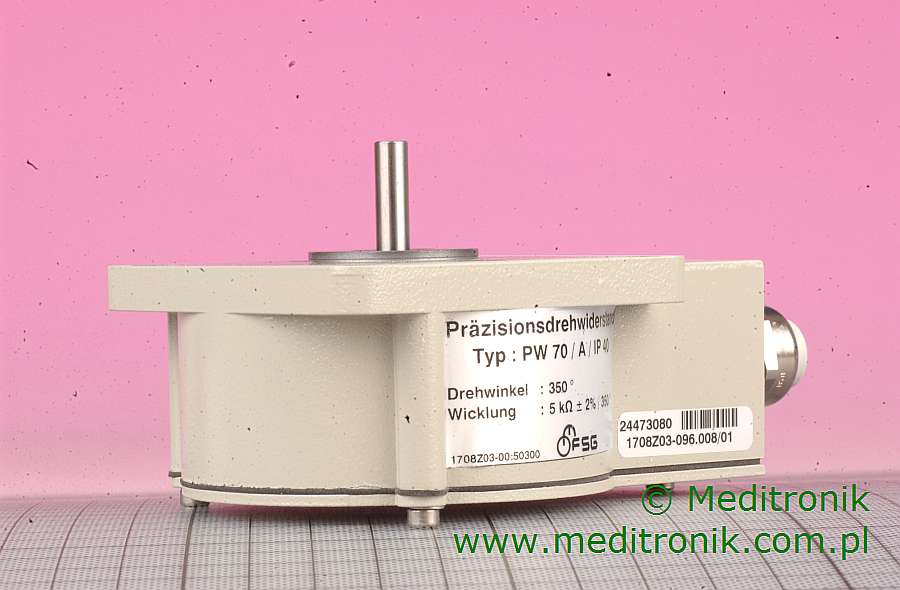

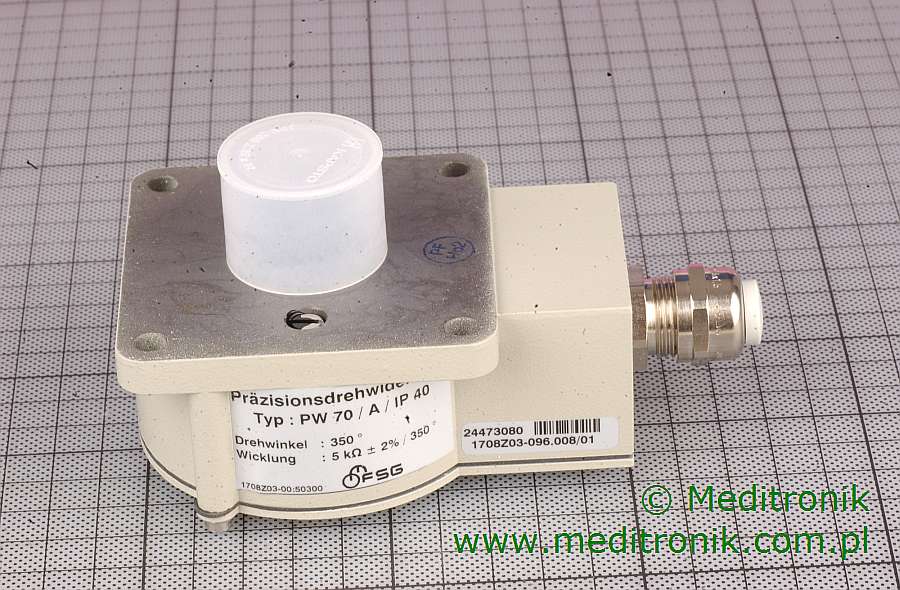

PW70/A/IP40-350-5K-1708Z03-096.008

1708Z03-096.008

[PW70/A/IP40-350-5K-1708Z03-096.008]

Potentiometer in Cast Iron IP40 Case - 350 degree Movement x 5k Ohms with Stops & Clutch PW70A (1708Z03-096.008 PW70A Precision Angular Position Transmitter (Precision Potentiometer) in cast iron case to IP40. (with PW 1700Z04-096.059) Potentiometer is 5k Ohms +-2% across the 350 Degree movement with mechanical stop and includes a slipping clutch for mechanical protection and adjusting key. 125mm x 75mm x 60mm overall. Shaft is 6mm x 21mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Precision Angular Position Transmitter PW70A in cast casing IP40 (mit PW 1700Z04-096.059) R = 5 kU +- 2%/350° stops shaft 6 mm Ý LF1 = 21 with slipping clutch with adjusting key acc. order # 0233 PW lub zamiennik ale IP65 1708Z03-352.078 Precision Angular Position Transmitter PW70A in cast casing IP65 (mit PW 1700Z04-096.059) R = 5kU ± 1% / 350° stops shaft 6 mm Ý with slipping clutch shaft Lf1 = 21 with adjusting key similar to order # 0233 PW
ZapytajZapytajZapytaj w drodze

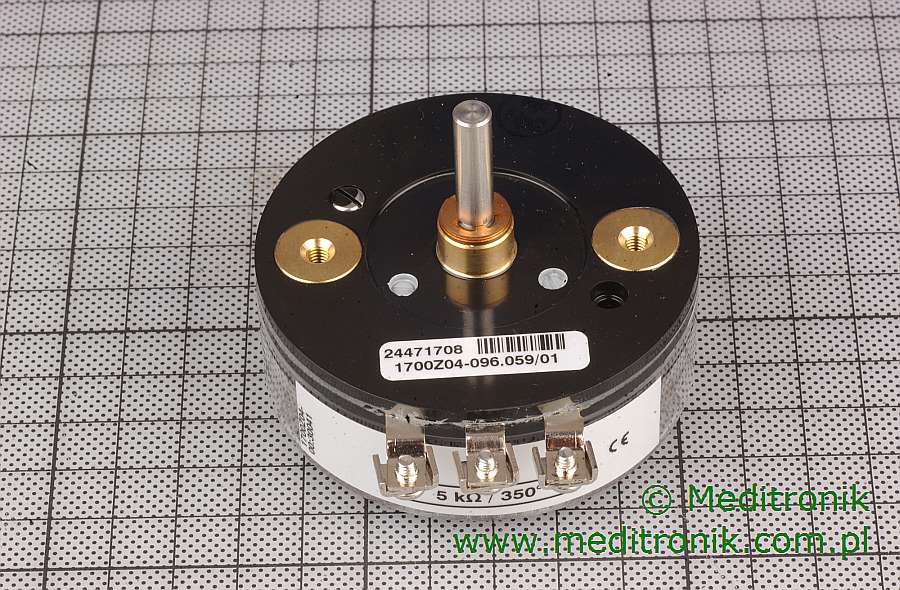

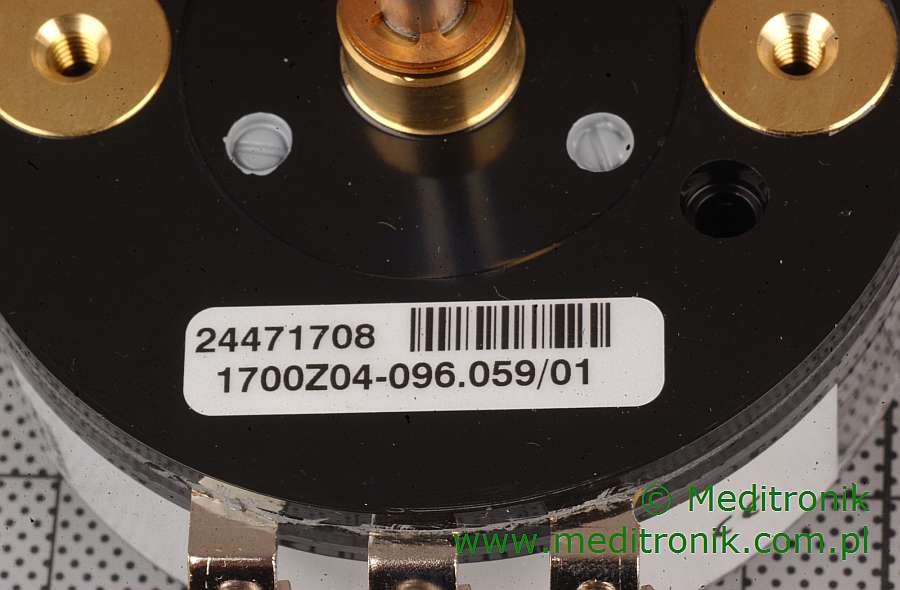

PW70-350-5K-1700Z04-096.059

1700Z04-096.059

[PW70-350-5K-1700Z04-096.059]

Potencjometr z modelu PW70/A/IP40-350-5K-1708Z03-096.008 i z takiego samego tylko IP65 zamiast IP40 PW70/A/IP65 350 5K 1708z03-352.078 ( z potencjometrem 1708z04-096.059) 1700Z04-096.059 Precision Potentiometer PW70-RK winding angle 350°, stops resistance 5 kU ± 1% / 350° shaft 6 mm Ý, LF 1 = 29 according to 0233 BPW-00:01 with incorporated slipping clutch cap with bore hole and cover i. e. cover according to 1700Z04-00:2602 and cover according to 1700Z04-00:2701 Uwaga: zdjęcie podobnego
ZapytajZapytajZapytaj w drodze
PW70/A/IP40-350-2,2K-1708Z03-096-050

1708Z03-096-050

[PW70/A/IP40-350-2,2K-1708Z03-096-050]

Potentiometer in Cast Iron IP40 Case 350 Degree Movement, 2.2k Ohms 1708Z03-096.050 Precision Angular Position Transmitter in cast iron case to IP40. Precision Potentiometer type PW70A (with PW 1700Z04-096.102) Resistance: 2.2k Ohms +- 1%. Movement: 350° with stops. Shaft: 6 mm diameter with woodruff key. Slipping Clutch: Included. L1 shaft # 0001W01-OR:1501. Weight: 0.44kg Appplications include dancer bar/dancing roller and any high performance/high reliability rotary position sensor. Part number: 1708Z03-096.050 (including PW 1700Z04-096.102) Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKpdf

1700Z04-096.102

[PW70-350-2,2k-1700Z04-096.102]

Potencjometr z PW70/A/IP40-350-2,2K-1708Z03-096-050
ZapytajZapytajZapytaj16-18BRAK

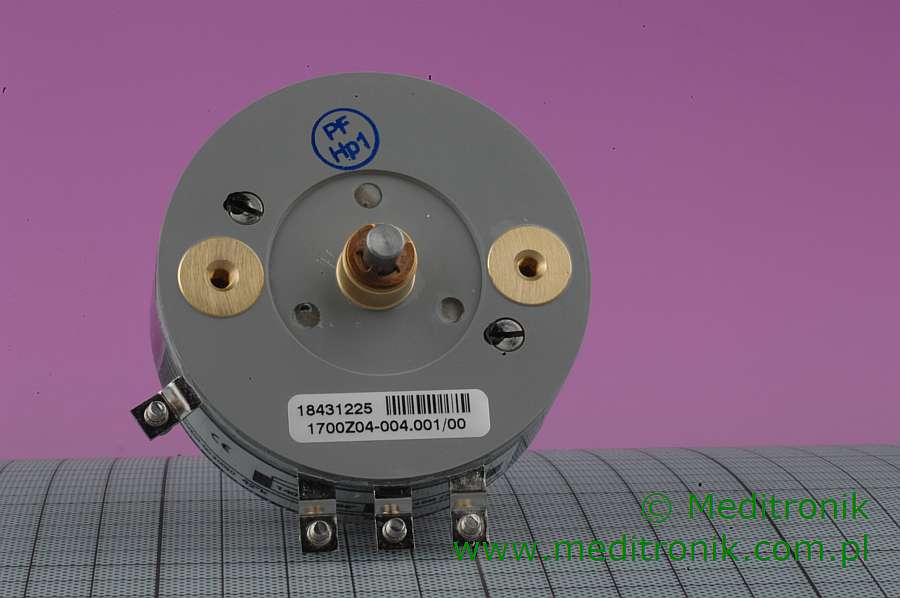

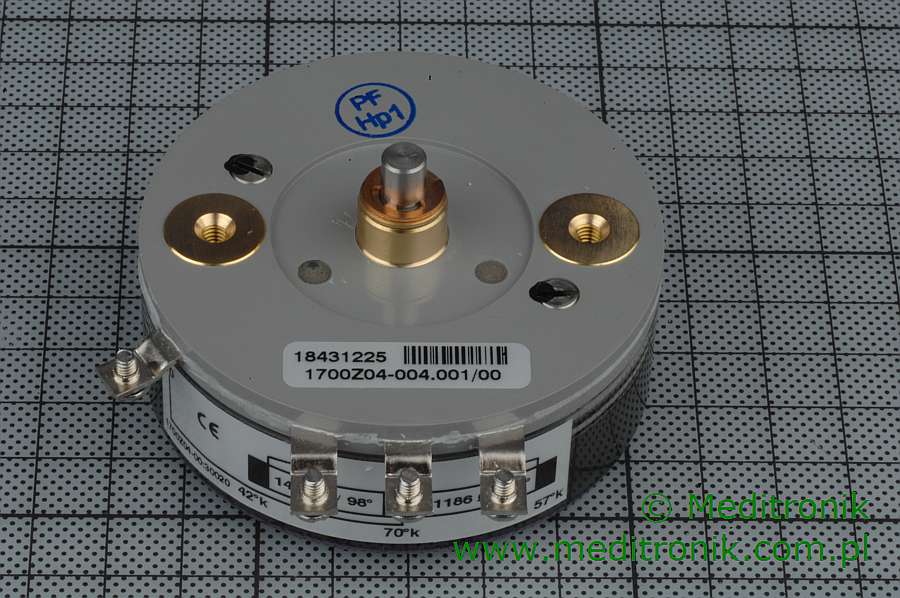

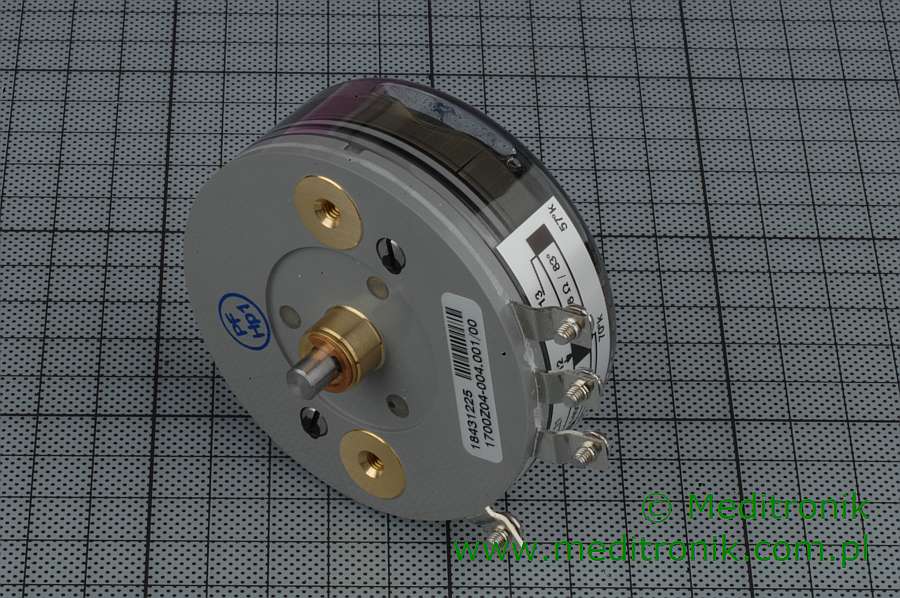

1700Z04-004.001

[PW70F-1700Z04-004.001]

Fernsteuergate Potentiometer PW70-F 1700Z04-004.001 PW70F Precision Angular Position Tranmsitter. Potentiometer specification: PW70-F with oil-filling: Shell Diala DX with clear cap winding angle 350° stops 0° - 42°: shorted 42° -140°: 1400 U ± 1%/98° 140°-210°: shorted and tapped 210°-293°: 1185,7 U ± 1%/83° 293°-350°: shorted with sintered bearing shaft 6 mm Ý 13,5 mm long from support shaft # 0001W01-00:0102 sense of rotation right in special version acccording to 1700Z04-004M001D i.e.1700Z04-004M001E max. torque 100 cmp
ZapytajZapytajZapytaj16-18BRAK
PW70/A/IP40-90-2571-1708Z03-065.011

1708Z03-065.011

[PW70/A/IP40-90-2571-1708Z03-065.011]

Potentiometer in Cast Iron IP40 Case - 90 degree Gear-less movement x 2571 Ohms 1708Z03-065.011 + 1700Z04-065.117 (PW70dA with PW 1700Z04-065.117) PW70dA Precision Potentiometer in cast iron case to IP40. Potentiometer is 2571 Ohms +-1% across the 90 Degree movement, with aditional 270 degree movement. 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Manufacturer is FSG Full part number is 1708Z03-065.011 as PW70dA with PW 1700Z04-065.117
ZapytajZapytajZapytaj16-18BRAKpdf pdf

1700Z04-065.117

[PW70-90-2571-PW 1700Z04-065.117]

Potencjometr z PW70/A/IP40-90-2571-1708Z03-065.011
ZapytajZapytajZapytaj BRAK

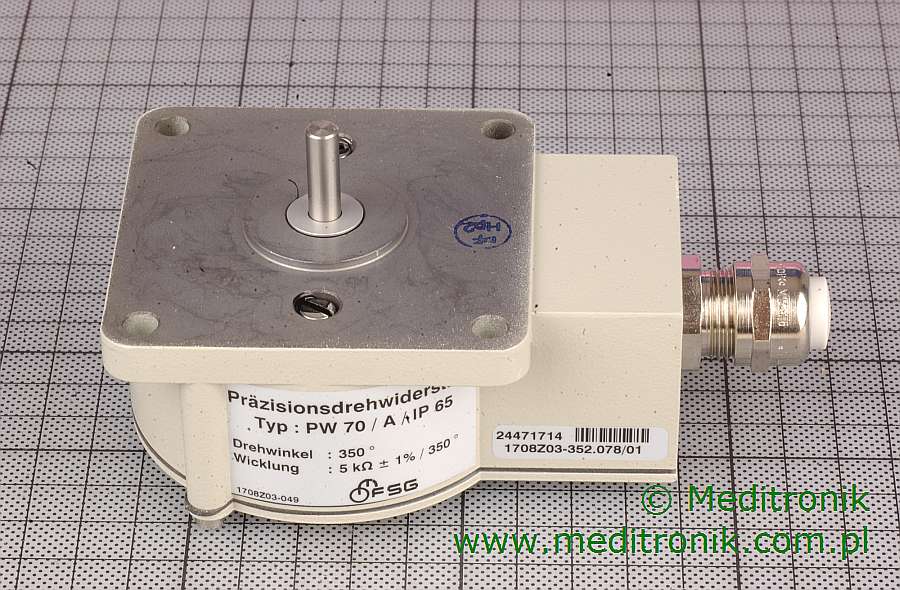

PW70/A/IP65-350-5K-1708Z03-352.008 +1700z04-096.011 PW70-ST-SC-5K PW70 res. 5k o

1708Z03-352.008

[PW70/A/IP65-350-5K-1708Z03-352.008 +1700z04-096.011 PW70-ST-SC-5K PW70 res. 5k o]

Potentiometer in Cast Iron IP65 Case 5k Ohms 350 Degree movement with Stops & Slipping Clutch 1708Z03-352.008 PW70A Precision Potentiometer in cast iron case to IP65 at 5k Ohms over 350 Degree movement with stops and slipping clutch. Resistance: 5k Ohms +-1%. Movement: over 350 Degrees with mechanical stops. Features: Slipping Clutch for mechanical protection. Shaft: 16mm long x 6mm Diameter. Enclosure rating: IP65 . Precision Angular Position Transmitter PW70A in cast casing IP65 accord. to 1708Z03-352M008D (with PW 1700Z04-096.011) R = 5 kU +- 1%/350° stops length from support 16 mm shaft 6 mm Ý, with slipping clutch w środku potencjometr: Precision Angular position transmitter PW70 res. 5k ohm+-1% 1700z04-096.011 PW70-ST-SC-5K Druga nasza nazwa PW70/A/IP65 350 5K
ZapytajZapytajZapytaj w drodzepdf pdf
PW70/A/IP65-350-10K-1708Z03-321.009

1708Z03-321.009

[PW70/A/IP65-350-10K-1708Z03-321.009]

Potentiometer in Cast Iron IP65 Case - 350 Degree Movement x 10k Ohms 1708Z03-321.009 PW70A Precision Potentiometer in cast iron case to IP65 enclosure rating. Potentiometer is 10k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation). 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications.
ZapytajZapytajZapytaj16-18BRAKpdf
PW70/A/IP65-350-2571-1708Z03-321.045

1708Z03-321.045

[PW70/A/IP65-350-2571-1708Z03-321.045]

Potentiometer in Cast Iron IP65 Case - 90 degree Gear-less movement x 2571 Ohms 1708Z03-321.045 + 1700Z04-065.117 PW70dA Precision Potentiometer in cast iron case to IP65. Potentiometer is 2571 Ohms +-1% across the 90 Degree movement, with aditional 270 degree movement. Shaft 6mm. Manufacturer is FSG Full part number is 1708Z03-321.045 as PW70dA with PW 1700Z04-065.117
ZapytajZapytajZapytaj16-18BRAKpdf

1700Z04-065.117-

[PW70-90-2571-1700Z04-065.117]

Potencjometr z PW70/A/IP65-350-2571-1708Z03-321.045 napisal, ze 1700z04-065-117 istnieje trzeba zweryfikowac
ZapytajZapytajZapytaj16-18BRAK
PW70/A/IP65-350-5K-1708Z03-352.009

1708Z03-352.009

[PW70/A/IP65-350-5K-1708Z03-352.009]

Potentiometer in Cast Iron IP65 Case - 350 Degree Movement 1708Z03-352.009 PW70A Precision Potentiometer in cast iron case to IP65 at 5k Ohms over 350 Degree movement with stops and slipping clutch. Resistance: 10k Ohms +-2%. Movement: over 350 Degrees with mechanical stops. Features: Slipping Clutch for mechanical protection. Shaft: 16mm long x 6mm Diameter. Enclosure rating: IP65 . Applications include Thruster Position sensing, dancer bar/dancing roller and any high performance/high reliability applications.
ZapytajZapytajZapytaj16-18BRAKpdf

1570Z02-009.011

[PW620II-18d-2x1K-1570Z02-009.011]

Precision Transmitter - 2 x 1k Ohms 1570Z02-009.011 (PW620II-18d) 1570Z02-009.011 (PW620II-18d) PW620II-18d Precision Angular Position Transmitter PW620II-18d in servo casing 20 Wiper rotatable without limit stops winding angle 360° 2 windings on one winding body with 1 wiper each Blind winding 60° each Resistance 2 x 1 kU ± 1% each on active angle 120° Strand connection 150 mm long Shaft 6 mm Ý 14 mm long Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAK
PW45-180-25K-1500Z05-067.002 oska 6 x 37 mm

1500Z05-067.002

[PW45-180-25K-1500Z05-067.002 oska 6 x 37 mm]

Precision Potentiometer PW45dy 360 Deg 25K? 1500Z05-067.002 (PW45dy) W45dy Precision Potentiometer. Potentiometer is 25 K? (kOhms) +/-1% winding angle 360° Wiper rotatable without limit stops Reactive winding 10° Short circuit section at beginning and end 85° each Resistance 25 kU ± 1% Active angle 180° With needle bearing With central fastening Shaft Ý 6 mm Length from support 37 mm Nett weight is 0.07kg Uwaga: zdjęcie podobnego podobny potencjometr 1500z05-065.019 Precision Angular Position Transmitter PW45d winding angle 360° wiper rotatable without limit stops blind winding 10° at the beginning and the end each 85° short-circuited resistance 25 kU ± 1% / 180° with needle bearing shaft 6 mm Ý, length from support 24 mm strand connection 150 mm long
ZapytajZapytajZapytaj16-18BRAK

1570Z02-013.009

PW620-19IId-2x175,5-1K-1570Z02-013.009 (PW620IId-19 ) Potentiometer - 2 x 172.5° movement x 1k Ohms for Marine use PW620IId-19 (1570Z02-013.009) PW620 Precision Potentiometer. Potentiometer is 2 x 1k Ohms +-1% across the 172.5° movement each with center tapping (2 separate windings on a combined winding form with one wiper each). Winding angle is 360° Reactive winding is 2 x 7.5° in Servo size 20 Connection by plug Shaft is 6 mm diameter x 16mm Marine version (shock-proof with increased contact pressure for use on board Ship) Manufacturers part number is PW620IId-19 (marked PW620-19IId). Prawdopodobnie jest to potencjometr z modelu Potentiometer in Cast Iron IP65 Case - 2 x 172.5° movement x 1k Ohms for Marine use PW620IIdA-IP65-ST (1708Z90-259.101)
ZapytajZapytajZapytaj16-18BRAK
PW70OF/IP65/180-5K-1708Z03-325.114

1708Z03-325.114

[PW70OF/IP65/180-5K-1708Z03-325.114]

Precision Oil Filed Potentiometer IP65 Case 180 degree active 5k Ohms 1708Z03-325.114 (PW70-ÖF 1700Z04-069.017) PW70d-ÖF-A with oil filling, Precision Angular Position Transmitter in cast iron case to IP65 (with PW 1700Z04-069.012) with cable inlet for moist atmospheres Potentiometer is 5k Ohms +-2% across the 360 Degree movement, Active angle 180 Degree wiper continuous rotation without limit stops Approximate overall dimensions: 125mm x 76mm x 60mm overall. Shaft is 6mm diameter x 16mm long Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Weight: 0.48Kg Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAK

1700Z04-069.017

[PW70OF-180-5K-1700Z04-069.017]

Prawdopodobnie potencjometr z modelu PW70OF/IP65/180-5K-1708Z03-325.114
ZapytajZapytajZapytaj BRAK

1566Z02-001.008

[PK613MIId-15-352-2x2K-1566Z02-001.008]

Potentiometer - 352° movement x 2k Ohms x 2 - PK613MIId-15 1566Z02-001.008 (PK613MIId-15) Precision Plastic Potentiometer PK613-15 in flange casing servo mount size 13 PK613MIId-15in flange casing size 13 wiper continious rotation without limit stops with resistance element SD R1 = 2 k? ± 10%/352° R2 = 2 k? ± 10%/352° each with center tapping shaft 6 mm O 24 mm long Manufacturers part number is 1566Z02-001.008 (PK613MIId-15)
ZapytajZapytajZapytaj16-18BRAK

1574Z05-036.001

[PK620d/MU-i02V 1574Z05-036.001 (PK620-25d)]

Precision Angular Position Transmitter - PK620d/MU-i02V 1574Z05-036.001 (PK620-25d) Precision Angular Position Transmitter PK620d/MU-i02V in servo flange casing 20 Wiper rotatable without limit stops Output +20 mA...4 mA...+20 mA V-characteristic curve burden max 600 Ohms Supply 20-30VDC 2-wire system Version according to 0313PK Torque 3 10 cmp and 3 0,1 Ncm Net Weight: 0.12Kg Customs tariff code: 90318034
ZapytajZapytajZapytaj16-18BRAK
PW70OF?IP65-240-5K- 1708Z03-325.108

1708Z03-325.108

[PW70OF?IP65-240-5K- 1708Z03-325.108]

Precision Angular Position Transmitter, Cast Iron IP40 Case - 240 degree movement x 5k Ohms 1708Z03-325.108 PW70d-ÖF-A with oil filling, Precision Angular Position Transmitter in cast iron case to IP65 (with PW 1700Z04-069.012) with cable inlet for moist atmospheres Potentiometer is 5k Ohms +-1% across the 240 Degree movement, Active angle 120 Degree wiper continuous rotation without limit stops Approximate overall dimensions: 125mm x 75mm x 60mm overall. Shaft is 6mm diameter x 16mm long Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Weight: 0.47Kg Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKpdf

1700Z04-069.012

[PM70dOF-240-5K-1700Z04-069.012]

Potencjometr z modelu PW70OF?IP65-240-5K- 1708Z03-325.108
ZapytajZapytajZapytaj16-18BRAK

1561Z01-001.018

[PK613MIId-18-345-2k+5K-1561Z01-001.018]

Potentiometer - 345° movement 2 windings 2k? & 5k? Ohms PK613MIId-18 561Z01-001.018 (PK613-18MIId) Precision Plastic Potentiometer PK613-18 in flange casing servo mount size 13 PW613-18MIId flange casing Size 13 with 2 isolated windings 2 x Isolated winding bodies Winding angle 2x360° Wiper rotate without limit stops at beginning and end each winding 5° short-circuited Middle tapping (2° wide) each level Active rotary angle 345° Resistance I 2 k? ± 5%/345° Resistance II 5 k? ± 5%/345° Connection via soldered braids Shaft 6 mm Ý 14 mm long Dimension: 36.5mm diameter with a 33.5mm register, overall depth 33.4mm Manufacturers part number is 1561Z01-001.018 (PK613-18MIId or PK613-MIId-18) Customs tariff code: 85 33 40 10
ZapytajZapytajZapytaj16-18BRAKpdf

1566Z02-009.001

[PK613MIIId-15-3x5K-1566Z02-009.001]

Potentiometer - 3 windings 5k? Ohms PK613MIIId-15 1566Z02-009.001 (PK613MIIId-15) Precision Plastic Potentiometer PK613MIIId-15. Precision Plastic Potentiometer. Article Number: 1566Z02-009.001. PK613MIIId-15 with 3 levels with conductive plastic element wiper rotatable without limit stops resistance 3 x 5 kU ± 10% shafts Ý 6mm length from support 14 mm with 3 fastening clamps 0061W01-00:06 Net weight: 0.06kg Customs tariff code: 85 33 40 10
ZapytajZapytajZapytaj16-18BRAK
PK613-46M IID 5K 352 1566Z81-005.110/00; PK613MIId-46-352-2x5k-1566Z81-005.110

1566Z81-005.110

[PK613-46M IID 5K 352 1566Z81-005.110/00; PK613MIId-46-352-2x5k-1566Z81-005.110]

Potentiometer - 352° movement x 5k Ohms x 2 - PK613MIId-46 1566Z81-005.110 (PK613MIId-46) PK613MIId-46-352-2x5k-1566Z81-005.110 Precision Plastic Potentiometer PK613-15 in flange casing servo mount size 13 PK613MIId-46 with resistance elements SD in casing of servo mount size 13 version 1566Z81-005M110D connection via plug, label FASTON wiper continuous rotation without limit stops R1 = 5 kU ± 20%/352° R2 = 5 kU ± 20%/352° each with center tapping with soldered wires stranded hook-up wire highflexible type Lify, 0,25 mm2 (128x0,05) wire length 350 mm shaft 6 mm Ý 14 mm long designed for ships i.e. with sintered bearing shock-proof version. Net weight: 0.6kg. Manufacturers part number is 1566Z81-005.110 (PK613MIId-46 or sometime refered to as PK613-46M IId) Customs tariff code: 85 33 40 10
ZapytajZapytajZapytaj w drodzefoto foto foto foto foto pdf pdf

3140Z01-000.001

[3140Z01-000.001 (M7-G30-PW613-15 (#119MP)]

M7-G30-PW613-15 Motor Potentiometer 3140Z01-000.001 3140Z01-000.001 (M7-G30-PW613-15 (#119MP))Order Code: 30569 PW613 motor Potentiometer M7-G30-PW613-15 5K Ohms 330 Deg +2.5 Deg i= 100:1 Shaft 8mm for 2mm stepped down to 2.9mm for 10mm Motor voltage: 10V DC version acc. to order # 0119MP Wieght 0.080 KG Customs Tariff code: 85 01 10 99 Manufacturers Part No: 3140Z01-000.001 (1567Z01-001.034/00) Narduk: M7-G30-PW613-15 Spanung 10V DC Wiederstandt 5 kohm 330 deg Getriebe 100:1 Potencjometr- 1587z01-001.034 blok. 314z01-000.001
ZapytajZapytajZapytaj16-18BRAKpdf
PW70?A/IP40-350-x2K-1708Z03-065.006 PW70d/A

1708Z03-065.006

[PW70?A/IP40-350-x2K-1708Z03-065.006 PW70d/A]

Potentiometer in Cast Iron IP40 Case - 350 Degree Movement x 2k Ohms - PW70d/A 1708Z03-065.006 + 1700Z04-065.006 PW70d/A Precision Potentiometer in cast iron case to IP40 enclosure rating. Potentiometer is 2k Ohms +-1% across 350 Degree movement (within 360 degree mechanical rotation). 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications. Other resistance values are available on request. Manufacturers part number is 1708Z03-065.006 + 1700Z04-065.006 Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKpdf pdf

1700Z04-065.006

[PW70-350-2K-1700Z04-065.006]

Potencjomet z modelu PW70?A/IP40-350-x2K-1708Z03-065.006 PW70d/A
ZapytajZapytajZapytaj15-17BRAK

1572Z05-003.106

[PW620/MU-i01 1572Z05-003.106]

Potentiometer 345° movement x 4-20mA - PW620/MU-i01 1572Z05-003.106 (PW620/MU-i01) Precision Potentiometer - PW620/MU-i01. Casing: model 20 with limit stops Active range: 0 - 345° Output: 4 - 20 mA at max. 600 Ohms preset at 0 - 345° Supply: 20-30 VDC with galvanic isolation between supply and output terminals. Shaft # 1570z02-000:22A torque 3 10 cmp and 3 0,1 Ncm respectively Customs tariff code: 85 33 31 00 Manufacturers part number is PW620/MU-i01 - 1572Z05-003.106 (PW-620-MU-i01 - 1572Z05003106) Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKpdf
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 1210

1572Z05-004.012

[PW620/MU-i01 1572Z05-004.012]

Precision Angular Position Transmitter PW620d/MU-i02 in servo flange casing 20 output 4-20mA at max 600U preset to 0-345° supply 20-30VDC 2-wire system shaft 6mm Ý 14 mm long from support torque 3 10 cmp or 3 0,1 Ncm Label: 96050961 Angular position transducer/potentiometer Model: PW620-MU/I-02 Supply voltage: 18-33 V DC Output: 4-20 mA Angle: 53-355o Zero-point adjustment: 0-24o Span-adjustment: 53-355o
ZapytajZapytajZapytaj18-20BRAK
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 11020
PK620MIId-17-355-2x2k-1576Z12-065.009

1576Z12-065.009

[PK620MIId-17-355-2x2k-1576Z12-065.009]

Potentiometer - 355° movement 2 x 2k Ohms - PK620MIId-17 1576Z12-065.009 (PK620MIId-17) Precision Plastic Potentiometer PK620MIId-17 in casing with size 20 servo mount. 2 Resistance tracks Conductive plastic elements Wiper is rotatable without limit stops Helical wiper and hold-down device and contact oil. Resistance is 2 x 2 k Ohms ± 10% over an active angle of 355° each with center tapping Shaft is 6.35 mm Diameter in a sintered bearing, length from support is 14 mm. Manufacturers part number is PK620MIId-17- 1576Z12-065.009 (PK-620-MIId-17- 1576Z12065009 ) Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKfoto foto foto foto foto foto

5720Z02-003.004

[PW1023d-MU (5720Z02-003.004)]

Potentiometer - 90 Degree Movement x 600 Ohms for 4 - 20mA - PW1023d-MU PW1023d-MU (5720Z02-003.004) W1023d Precision Potentiometer. Potentiometer is 600 Ohms across 90 Degree movement without stops. PW1023d-MU in servo flange casing size 23 Protection class: IP 65 Wiper is rotatable without limit stops. Output: 4 - 20 mA at max. 600 Ohms Active Angle: 0 - 90 ° Connection is 3/4 wire system, with galvanic isolation. Sense of rotation: Right. Shaft: 10 mm diameter x 24mm length from bearing. Fixing is via 3 Servo clamps and 3 fastening screws (included). Manufacturers part number is PW1023d-MU This is the replacement for the now obsolete type: PW-1025-003 AN:5520Z05-003.004 2 Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKpdf

1708Z90-259.101

[PW620IIdA-IP65-ST-2x175.5-1K-1708Z90-259.101]

Potentiometer in Cast Iron IP65 Case - 2 x 172.5° movement x 1k Ohms for Marine use PW620IIdA-IP65-ST (1708Z90-259.101) PW620 Precision Potentiometer in cast iron case to IP65. Potentiometer is 2 x 1k Ohms +-1% across the 172.5° movement each with center tapping (2 separate windings on a combined winding form with one wiper each). Winding angle is 360° Reactive winding is 2 x 7.5° Cast casing to IP65 Connection by plug Shaft is 6 mm diameter x 16mm Marine version (shock-proof with increased contact pressure for use on board Ship) Manufacturers part number is PW620IIdA-IP65-ST (marked PW620-19IId). Customs Tariff code: 85 33 31 000 w środku jest potencjometr: PW620-19IId-2x175,5-1K-1570Z02-013.009 (PW620IId-19 ) Potentiometer - 2 x 172.5° movement x 1k Ohms for Marine use PW620IId-19 (1570Z02-013.009) PW620 Precision Potentiometer. Potentiometer is 2 x 1k Ohms +-1% across the 172.5° movement each with center tapping (2 separate windings on a combined winding form with one wiper each). Winding angle is 360° Reactive winding is 2 x 7.5° in Servo size 20 Connection by plug Shaft is 6 mm diameter x 16mm Marine version (shock-proof with increased contact pressure for use on board Ship) Manufacturers part number is PW620IId-19 (marked PW620-19IId). Prawdopodobnie jest to potencjometr z modelu Potentiometer in Cast Iron IP65 Case - 2 x 172.5° movement x 1k Ohms for Marine use PW620IIdA-IP65-ST
ZapytajZapytajZapytaj16-18BRAKpdf

1576Z12-005.109

[1576Z12-005.109 PK620MIId-16-355-2x1k]

Potentiometer - 355° movement 2 x 1k Ohms - PK620MIId-16 1576Z12-005.109 (PK620MIId-16) recision Plastic Potentiometer PK620MIId-16 in servo casing size 20. 2 Resistance tracks with conductive plastic elements. Wiper is rotatable without limit stops. Resistance is 2 x 1k? ± 10% over an active angle of 355° each with center tapping Shaft is 6mm diameter from support. 24mm ship's version (with a sintered bearing, length from support is 24 mm). Weight: 0.08kg Manufacturers part number is PK620MIId-16- 1576Z12-005.109.
ZapytajZapytajZapytaj16-18BRAK

3140Z01-000.008

[3140Z01-000.008 (M7-G30-PW613-15)]

M7-G30-PW613-15 Motor Potentiometer with etched filler plates 3140Z01-000.008 (M7-G30-PW613-15) PW613 motor Potentiometer M7-G30-PW613-15 5K Ohms 330 Deg +2.5 Deg i= 100:1 Shaft 8mm for 2mm stepped down to 2.9mm for 10mm Version according to order # 0119MP however with additional etched filler plates Wieght 0.080 KG Customs Tariff code: 85 01 10 99 Manufacturers Part No: 3140Z01-000.008
ZapytajZapytajZapytaj2-4BRAKpdf

1571Z01-009.003

[1571Z01-009.003 (PW620/120-18MIId)]

Angular Position Transmitter PW620/120-18MIId 1571Z01-009.003 (PW620/120-18MIId) PW620/120-18MIId Precision Angular Position Transmitter. PW620/120-18MIId in servo casing size 20 with 2 isolated windings winding I + II each as DE-transmitter resistance I + II each approx. 2087 U on 360° that means cross resistance each approx. 521 U shaft 6 mm Ý 14 mm long. Net Weight: 0.15kg.
ZapytajZapytajZapytaj16-18BRAKpdf

1566Z02-013.108

[1566Z02-013.108 (PK613MIIId-16-352-3x5K]

Potentiometer - 352° movement x 5k Ohms x 3 - PK613MIIId-16 1566Z02-013.108 (PK613MIIId-16) Precision Plastic Potentiometer PK613-16 with 3 tracks PK613MIIId-16with resistance element SD Version according to 0422 PK Wiper continuous rotation without limit stops Resistance: 3 x 5 kOhm ± 10% / 352° Each with center tapping, with soldered wires, switching wire highly flexible! Type Lify, 0,25 mm2 (128x0,05) Shaft: O 6 mm Length from support 14 mm Version for ships i. e with sinter bearing Shock-proof version Dimensions: 36.5 o by 40mm including shaft.
ZapytajZapytajZapytaj16-18BRAKpdf

1700Z04-064.001

[PW70D-240-1K-1700Z04-064.001 lub 1700z-4-067.001]

PW70dy Precision Angulat Transmitter. Potentiometer is 2k Ohms +-1% across 240 Degree movement, (Wiper is rotatable without limit stops, 240°, short circuited at each end) Shaft is 6mm x 24mm (shaft # 0001W01-00:0108) Used for Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications. Other resistance values are available on request.
ZapytajZapytajZapytaj16-18BRAK

9249Z51-001.012

[WEVi5-09/EEXAT/K16 (9249Z51-001.012)]

WEVi5-09/EEXAT/K16 - Electronic Unit WEVi5-09/EEXAT/K16 (9249Z51-001.012) Electronic Unit model WEVi5-09/EEXAT/K16 in casing for standard rack mounting. Input from measuring head models WD620 and WDG620 respectively for ± 11.25 ... ± 45° (max. 360°). Output: 20-4 mA preset at 0-84.38°(0-337.5°) Corresponds to:- 0-5m - SL3005/GS130 0-10m - SL3010/GS130 0-15m - SL3015/GS130 2-wire system Supply: 8-24 V DC intrinsically safe with ATEX approval Customs Tariff Code: 90318091
ZapytajZapytajZapytaj16-18BRAK
PW45W3MII (1304Z10-000.001)

1304Z10-000.001

[PW45W3MII (1304Z10-000.001)]

Potentiometer - 2x90/1080/90° x 5k Ohms - PW45W3MII PW45W3MII (1304Z10-000.001) W45W Precision Potentiometer. Potentiometer is 2 x 5k Ohms +-5% across 1080 Degree movement with stops. Shaft is 6mm dia x 20.5mm long Manufacturers part number is PW45W3MII (1304Z10-000.001) Other resistance values are available on request. Customs Tariff code: 85 33 31 00 Nasza nazwa: PMPW45W3MII-1304Z10_000.0 i PMPW45W3MII-1304Z10-000.0
ZapytajZapytajZapytaj w drodzefoto foto foto pdf

1571Z80-269.001

[PW620/90-42MIId-1571Z80-269.001]

Precision Angular Position Potentiometer PW620 1571Z80-269.001 1571Z80-269.001 Precision Angular Position Transmitter PW620/90-42MIId in servo casing size 20 with 2 isolated windings on isolated winding bodies winding each 360° wiper rotate without limit stops each with 4 at 90° shifted tappings each with 2 at 90° shifted wipers resistance each approx. 5217 ? shunt resistor each approx. 1304 ? sense of rotation right with flat solder connection short design shaft 6 mm Ý 14 mm long ship's design, that means with sinter bearing and double contact pressure with 3 fastening clamps
ZapytajZapytajZapytaj16-18BRAKpdf
Cena netto w PLN za sztukę przy zakupie minimum sztuk:

1825Z01-260.002

[PW45-GS150 (1825Z01-260.002]

Potentiometer in Cast Iron IP65 Case - 345 Degree Movement x 50 Ohms - PW45-GS150 PW45-GS150 (1825Z01-260.002)O PW45 GS150 Precision Potentiometer in cast iron case to IP65 enclosure rating. Potentiometer is 50 Ohms +-1% across 345 Degree movement, with stops and clipping clutch. 150mm diameter. Shaft is 12mm diameter Fixing flange has 4 x tapped holes. Applications include Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications. Other resistance values are available on request. Customs Tariff code: 85 33 31 000 Nett weight is 8.1kg Explosion-proof - Exd (Ex-d) and EExd versions are available, please enquire.
ZapytajZapytajZapytaj BRAK
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 11020
5720Z85-001.001 Potentiometer with gearbox - 345° x 600 Ohm - G19-PW1023d-001.0

5720Z85-001.001

[5720Z85-001.001 Potentiometer with gearbox - 345° x 600 Ohm - G19-PW1023d-001.0]

G19-PW1023d-001.001 Precision Potentiometer with intermediate gearbox precision potentiometer G19-PW1023d-001-MU in alu casing, anodized, servo mount size 23 with intermediate gearbox according to drawing # 5515Z02 transmission 25:1 speed reducing ratio shaft 10mmÝ, length from support 24mm protection of casing: IP65 with mounted precision potentiometer wiper continuous rotation without limit stops with integrated R/I converter output 4-20 mA at RA max. 600 U preset at 0 - 345,6° correspond to 0 - 24 rotations at drive sense of rotation right with view from drive-side supply 18-30 V 2-wire system with plug connection (straight) Weight: 0.6kg Manufacturers part number is G19-PW1023d (1511Z07-034.006)
ZapytajZapytajZapytaj16-18BRAK

5932Z50-130.533

[SL3003/XX/GS80/K/S-01 5932Z50-130.553 (SL3003/XX/GS80/K/S-01)]

Rope Length Transmitter and Precision Signal Converter. Rope length transmitter type SL3003/XX/GS80/K/S-01 with typew approval TÜV 3 ATEX 7131 X with hart-coat with mounted wire guidance circumference of drum 200 mm Ý of measuring wire 1,35 mm 15 turns of drum correspond to 3 m wire pull-off i. e. without g Weight: 1.6kg. Manufacturers part number is 5932Z50-130.553 - SL3003/XX/GS80/K/S-01.
ZapytajZapytajZapytaj14-16BRAKNa życzenie pdf

3601Z02-001.006

[3601Z02-001.006 (PW620MIId-G90) PW620-29/90/120MIId-G90]

Precision Potentiometer PW620-29/90/120MIId-G90 in cast casing with cable inlet for moist atmospheres IP code IP65 Intermediate gearbox, backlash reduced 2 separate windings at separate formers wiper continuous rotation without limit stops. Winding I/II: according to circuit 702 3 tappings with 120° offset 2 wipers with 180° offset resistance approx. 2087 U Ý of driving shaft 6mm Weight: 0,800 KG Manufacturers part number is PW620MIId-G90 (3601Z02-001.006) Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj12-14BRAKpdf

5932Z01-328.144

[5932Z01-328.144 (SL3002-PK1023-MU/GS80/F-01)]

2m Rope Length Transmitter - 4-20mA - 5932Z01-328.144 5932Z01-328.144 (SL3002-PK1023-MU/GS80/F-01) Rope Length Transmitter and Precision Signal Converter in Aluminium case. Aluminium Housing is from the GS 80 Series Measuring Range is maximum 2m to wire diameter 1.35mm Bellow-type arrangement at wire outlet Includes integral precision signal converter type PK1023-MU (5710Z02-275.015) for 4-20mA Output at maximmum 600 Ohms corresponding to 0/2m measuring range. Requires a Power Supply at 18-33V DC 4-wire system with galvanic isolation Plug-Connection (straight) Manufacturers part number is SL3002-PK1023-MU/GS80/F-01 Customs Tariff code: 90 31 80 91
ZapytajZapytajZapytaj14-16BRAKNa życzenie

3601Z02-001.051

[3601Z02-001.051 (PW620MIId-G90)]

Precision Potentiometer PW620-MIId-G90 in cast casing G90 IP code IP65 With gear high precision fit = 70:1 speed reduction ratio. Primary shaft 6mm diameter with 2 isolated windings, wiper rotatable without limit stops Winding I/II: according to circuit 702 resistance approx. 2087? Net Weight: 0,800 KG Manufacturers part number is PW620MIId-G90 (3601Z02-001.051) Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj14-16BRAK

5932Z01-144.048

[5932Z01-144.048 (SL3003-MH1023-MU/GS80/G-01)]

3m Rope Length Transmitter - 4-20mA - 5932Z01-144.048 5932Z01-144.048 (SL3003-MH1023-MU/GS80/G-01) Rope Length Transmitter and Precision Signal Converter. Measuring Range is maximum 3m to wire diameter 1.35mm With Brushes and grease chamber With added magnetic rotary angle signal converter type: MH1023-MU (5754Z03-240.002) for 4-20mA Output at maximmum 600 Ohms preset at 3000mm. Requires a Power Supply at 19-33V DC 3-wire system without galvanic isolation With cable gland and cable. Cable length 2mtr. Manufacturers part number is SL3003-MH1023-MU/GS80/G-01 Customs Tariff code: 90 31 80 34
ZapytajZapytajZapytaj16-18BRAK

5930Z50-066.092

[5930Z50-066.092 SL3010-X1/GS130/G/F-01]

10m Rope Length Transmitter without Potentiometer SL3010-X1/GS130/G/F-01 SL3010-X1/GS130/G/F-01 (5930Z50-066.092) Rope Length Transmitter Type: SL3010-X1/GS130/G/F-01 in aluminium casing. Model GS130. Measuring Length: 0 - 10m maximum. Diameter of measuring wire: 1.35mm diameter with bellows at wire outlet. Circumference of drum: 333 mm. Gearing: 32 : 1 reduction ratio. Mounting of transmitter label FSG series 1023. Pinion for transmitter is included (bulk). Part Number: SL3010-X1/GS130/G/F-01 (5930Z50-066.092). Customs Tariff code: 90318091
ZapytajZapytajZapytaj14-16BRAK

5932Z01-392.120

[5932Z01-392.120 (SL3003-PK1023-MU/GS80/G/01)]

3m Rope Length Transmitter - 4-20mA - 5710Z02-275.004 5932Z01-392.120 (SL3003-PK1023-MU/GS80/G/01) Rope Length Transmitter and Precision Signal Converter in Aluminium case. Aluminium Housing is from the GS80 Series Measuring Range is maximum 3m to wire diameter 1.35mm Bellow-type arrangement at wire outlet Includes integral precision signal converter type PK1023-MU (5710Z02-275.004) for 4-20mA Output at maximmum 600 Ohms corresponding to 0/3m measuring range. Requires a Power Supply at 18-33V DC 4-wire system with galvanic isolation Plug-Connection (straight) Manufacturers part number is SL3003-PK1023-MU/GS80/G/01 Customs Tariff code: 90 31 80 91
ZapytajZapytajZapytaj14-16BRAKpdf pdf

3601Z02-033.006

[3601Z02-033.006 (PW620-29/90/120MIId-G90)]

Potentiometer PW620-29/90/120MIId-G90 3601Z02-033.006 (PW620-29/90/120MIId-G90 Precision Potentiometer PW620-29/90/120MIId-G90 in cast casing with cable inlet for moist atmospheres IP code IP65 with gearing (free from backlash) i = 1 : 1,0455 speed increasing ratio with 2 separate windings at separate formers wiper continuous rotation without limit stops. Winding 1 as MW 360-encoder with 4 tappings with 90° offset with 2 wipers with 90° offset resistance approx. 5217 U cross resistance approx. 1304 U Winding 2 as DE-encoder with 3 tappings with 120° offset with 2 wipers with 180° offset resistance approx. 1043 U cross resistance approx. 1043 U shaft 6mm Ý 14 mm long back-ended shaft with pointer and printed scale according to drwng SA-PW20-0031 version for ship i. e. with sintered bearing and shock-proof with seal for cap and shaft via O-ring Weight: 0,751 KG Manufacturers part number is PW620-29/90/120MIId-G90 (3601Z02-033.006) Customs Tariff code: 85 33 31 000
ZapytajZapytajZapytaj16-18BRAKpdf

1803Z02-001.027

[G15-PW620-24d/GS150 in cast casing GS150 IP65 1803Z02-001.027]

G15-PW620 Angular Position Transmitter 1803Z02-001.027 G15-PW620-24d/GS150 in cast casing GS150 IP65 Angular Position Transmitter G15-PW620 Shaft 12 mm Ý with feather key and groove with G15 Getriebe free from backlash i = 6 : 1 speed reducing ratio with mounted PW620-24d Wiper continuous rotation without limit stops, with metal wiper bearing Reactive winding 60° Resistance 1 kU ± 2 % Active angle 300° Max. temperature range 0 - 120°C CustomsTariff # 85 33 31 000 Manufacturers Part Number 1803Z02-001.027
ZapytajZapytajZapytaj14-16BRAK

5930Z01-328.166

[SL3010-PK1023-MU/GS130/G/F/01 (5930Z01-328.166)]

10m Rope Length Transmitter with Potentiometer - SL3010-PK1023-MU/GS130/G/F/01 SL3010-PK1023-MU/GS130/G/F/01 (5930Z01-328.166 Rope length transmitter SL3010-PK1023-MU/GS130/G/F/01 Measuring length max. 10 m Casing coated with hart-coat Measuring wire 1,35 mm Ý Circumference of drum 333 mm, with cable drum of stainless steel, Splined hub in V4A steel and sealed ball bearings with bellows, brushes and grease chamber at wire outlet with added conduktiv-Plastik-Poti Type PK1023-MU (5710Z02-387.015) Output 4-20 mA at max. 600 U Supply 20-30 V DC 4-wire system, with galvanic isolation between output and supply Preset at 0 - 10 m Cable-connection, length of cable 3 m Manufacturers part number is SL3010-PK1023-MU/GS130/G/F/01 (5930Z01-328.166) Customs Tariff code: 90318091
ZapytajZapytajZapytaj16-18BRAK

5930Z01-080.547

[SL3010-MH1023-MU/GS130/G/EEx (5930Z01-080.547)]

10m Rope Length Transmitter with ATEX Encoder - SL3010-MH1023-MU/GS130/G/EEx SL3010-MH1023-MU/GS130/G/EEx (5930Z01-080.547 Rope length transmitter type SL3010-MH1023-MU/GS130/G/EEx in alu casing of model GS130 with certificate of type-examination TÜV 3 ATEX 7131 X measuring length 10 m diameter of mesuring wire >1,35mm with mounted encoder Atex measuring system: non-cont Output: 4-20 mA, intrinsically safe signal output in 2 wire version. Calibation of signal via connecting cable preset at 10m supply only via intrinsically safe power supply unit supply 9 -33V DC connection via cable. ATEX length 15m. Weight: 5.3kg. Manufacturers part number is 5930Z01-080.547 Customs Tariff code: 90318091
ZapytajZapytajZapytaj16-18BRAK

40.720.003

[SL3001-PW613-MU/GS55/01 (40.720.003)]

1m Rope Length Transmitter SL3001-PW613-MU/GS55/01 SL3001-PW613-MU/GS55/01 (40.720.003) Rope Length Transmitter. Typ: SL3001-PW613-MU/GS55/01 version according to drawing 5929Z55 (standard design - email us for special designs and other options and include the serial or article number). Measuring range: 0/1m. Diameter of measuring wire: 0.55mm. Rotary Encoder Type: PW613 (1567Z50-000.045). Signal Converter Output; 4-20 mA corrsponding to 0/1m. Maximum burden: 600 Ohms. 3-wire system for 18-33V DC supply. Manufacturers part number: SL3001-PW613-MU/GS55/01 Customs Tariff code: 90318034
ZapytajZapytajZapytaj14-16BRAK

573S10-004.001

[PW55-01d-20-5K-573S10-004.001]

Precision Potentiometer - 1573S10-004.001. Flattened design. Wiper continuous rotation without limit stops. Rotation angle 330° Short-circuited at the beginning and the end 20° each + additional overflow. Resistance ca 5k Ohms Active range 20° Manufacturers part number is 1573S10-004.001 (PW55-01d) Customs Tariff code: 85 33 31 00
ZapytajZapytajZapytaj16-18BRAK

8249Z02-000.001

[NG-BW.EEx02.2AT/K16 (8249Z02-000.001)]

NG-BW.EEx02.2AT/K16 - Power Supply with Burden Converter NG-BW.EEx02.2AT/K16 (8249Z02-000.001) Power Supply with Burden Converter model NG-BW.EEx02.2AT/K16 in plastic casing for standard rack mounting. Intrinsically safe supply < 18V DC of an EEX-Signal Converter for inductive transmitters and conversion of burden of output signal of Signal Converter. Output: 0/4-20 mA at max. 600 Ohms Linearity: ±0.25% Response Time: <25ms Supply: 220-230V at 50Hz
ZapytajZapytajZapytaj14-16BRAK

5929Z55-264.035

[SL3001-PW613-MU/GS55/01 (5929Z55-264.035)]

FSG 1m Rope Length Transmitter SL3001-PW613-MU/GS55/01+1565Z51-000.011 SL3001-PW613-MU/GS55/01 (5929Z55-264.035 Rope Length Transmitter. Type: SL3001-PW613-MU/GS55/01 version according to drawing 5929Z55. Measuring range: 0/1m. Diameter of measuring wire: 0.55mm. Rotary Encoder Type: PW613 (1565Z51-000.011). Signal Converter Output: 4-20 mA corrsponding to 0/1m. Maximum burden: 600 Ohms. 3-wire system for 18-33V DC supply. Manufacturers part number: SL3001-PW613-MU/GS55/01
ZapytajZapytajZapytaj14-16BRAK

5932Z50-002.528

[5932Z50-002.528 (SL3001-X2/GS80/K/D/EEX)]

1m Rope Length Encoder SL3001-X2/GS80/K/D ATEX rated with adaptor 5932Z50-002.528 (SL3001-X2/GS80/K/D/EEX) Rope length encoders of the series SL3001-X2/GS80/K/D ATEX Certified Typ: SL3001-PW613-MU/GS55/01 Version according to drawing 5932Z50-01AMX2DD Adaptor dimensions: Overall 79mm Dia by 43.8mm Deep 3 x 4.2mm holes @ PCD 48m Central hole: 36mm See drawing attached Housing Dimensions: see drawing atched for full detail 80mm Square, total depth including adaptor 938mm Housing material: AL/MgSiF22 Anodised Measuring range: 0/1m. Spring Housing: GD-ZnA14 Black Diameter of measuring wire: 1.35mm. Stainless steel Measuring drum circumference: 200mm Measurement accuracy: +/-0.05% Spring res pull-back: 1 spring Initial Force: 6N End Force: 14N Temperature range: -20 to 70°C Adjustable: 4M/sec Lifetime: 1 Million Cycles Protection: IP64 Weight: 1.2kg Manufacturers part number: 5932Z50-002.528 (SL3001-X2/GS80/K/D) Customs Tariff code: 90318020
ZapytajZapytajZapytaj14-16BRAKNa życzenie pdf
PW70/A/IP65-350-1k-1708Z03-352.006

1708Z03-352.006

[PW70/A/IP65-350-1k-1708Z03-352.006]

Potentiometer in Cast Iron IP65 - 1k Ohms 350 Degree Stops and Clutch PW70A Precision Potentiometer in cast iron case to IP65 at 1k Ohms over 350 Degree movement with stops and slipping clutch. Resistance is 1k Ohms +-1% over 350 Degrees movement with mechanical stops. Casing A Slipping Clutch for mechanical protection Shaft 16mm long x 6mm Diameter Enclosure rating IP65 Applications include Thruster Position sensing, dancer bar/dancing roller and any high performace/high reliability applications. Other resistance values are available on request.
ZapytajZapytajZapytaj16-18BRAKpdf
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 125
wkrątce

PD550-4k545/4k545-s258-2x50deg

[PD550-4k545/4k545-s258-2x50deg Art.No.82171 PD550-S258]

Uwaga: Prawdopodobnie są dwie wersje jedna kręci się w kółko - kąt mechaniczny 360 stopni druga ze stopami - kąt mechaniczny 110 stopni Abyśmy przyjeli zamówienie musimy znać wersję zamiennik PD550-4k545/4k545-s258-2x50deg-NEW PD550 Uwaga: dostarczamy zamiennik
ZapytajZapytajZapytaj BRAK
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 1510
PD550-4k545/4k545-s258-2x50deg-NEW PD550-S258

PD550-4k545/4k545-s258-2x50deg-NEW PD550

[PD550-4k545/4k545-s258-2x50deg-NEW PD550-S258]

Precision Angular Position Transmitter PW55-01d in flat version wiper rotate without limit stops with middle short-circuit range 10° and tapped resistance 2 x 4 kOhm ± 5% active range 2 x 50° at beginning and end each 120° short-circuit PD550 był produkcji Contelec, PD550-..NEW = PW55/01 jest innego producenta. Zamiennik ma inny rozstaw pinów ( wsówek ), wsówki są identyczne. Dodatkowy kołnierz wokół jednego otworu mocującego. W sttandardowych joystickach kołnierz nie przeszkadza. Dla innych nietypowych zastosowań, jeżeli przeszkadza to można go spiłować. Parametry eletryczne, w tym specjalna charakterystyka są identyczne. Porównanie modelu PD550 oryginal i jego zamiennik / następca PD550...NEW = PW55/01 https://www.meditronik.com.pl/quick_search2.php?wzorzec=pd550+vs&gdzie=sym Differences: PD550 was made by Contelec, PD550 - .. NEW = PW55 / 01 is made by other manufacturer. The replacement has a different pin spacing (indentations), the indentices are identical. Additional collar around one mounting hole. In standard joysticks collar does not bother. For other unusual uses, if it bothers you can file it off. The electrical parameters, including the special characteristics, are identical. Comparison of models PD550 oryginal & replacement PD550...NEW = PW55/01 https://www.meditronik.com.pl/quick_search2.php?wzorzec=pd550+vs&gdzie=sym
ZapytajZapytajZapytaj16-18BRAK
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 11510
PW55/01-2X4K/2X50+10db-1573S-010-002-016 PD550-S258

PW55/01-2X4K/2X50+10db

[PW55/01-2X4K/2X50+10db-1573S-010-002-016 PD550-S258]

Precision Angular Position Transmitter PW55-01d in flat version wiper rotate without limit stops with middle short-circuit range 10° and tapped resistance 2 x 4 kOhm ± 5% active range 2 x 50° at beginning and end each 120° short-circuit zamiennik dla nieprodukowanego modelu PD550-4k545/4k545-s258-2x50deg z naszym numerem katalogowym PD550-4k545/4k545-s258-2x50deg-NEW Uwaga: są dwie wersje Ta kręci się w kółko, jest jeszcze wersja ze stopami - 110 stopni
ZapytajZapytajZapytaj w drodze
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 1510
PW55/01-2X4K/2X50+10db-STOP-110-1573S-010-002-001 PD550-S258

PW55/01-2X4K/2X50+10db-STOP-110

[PW55/01-2X4K/2X50+10db-STOP-110-1573S-010-002-001 PD550-S258]

Precision Angular Position Transmitter PW55-01 in flat version with stop limit at 110° with middle short-circuit range 10° and tapped resistance 2 x 4 kOhm ± 5% active range 2 x 50° zamiennik dla nieprodukowanego modelu PD550-4k545/4k545-s258-2x50deg z naszym numerem katalogowym PD550-4k545/4k545-s258-2x50deg-NEW Uwaga: są dwie wersje Ta kręci się w kółko, jest jeszcze wersja ze stopami - 110 stopni
ZapytajZapytajZapytaj w drodze
Cena netto w PLN za sztukę przy zakupie minimum sztuk:
PK613-16d-352-2K 1565Z02-005.001

1565Z02-005.001

[PK613-16d-352-2K 1565Z02-005.001]

Precision Plastic Potentiometer PK613-16d in flange casing servo mount size 13 Resistance element SD Wiper: Rotation without limit stops. Resistance: 2k? +/- 10%/ over 352° Shaft: 6mm dia x 14 mm long version for ships i. e. with sintered bearing Shock-proof version Torque 3 10 cmp and 3 0,1 Ncm 1565Z02-005.001 Precision Plastic Potentiometer PK613-16d in flange casing of servo mount size 13 with resistance element SD wiper continuous rotation without limit stops R = 2 kU +- 10%/352° shaft 6mm Ý 14 mm long version for ships i. e. with sintered bearing shock-proof version torque 3 10 cmp and 3 0,1 Ncm
ZapytajZapytajZapytaj w drodzefoto foto foto foto foto foto
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 11050
PW70-2K VS 1700Z04001.040

PW70-2K VS 1700Z04001.040

ZapytajZapytajZapytaj BRAKfoto foto foto foto foto foto pdf Info Zapytaj
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 125
PW70d 1700z04-001-040

PW70-2K-320D-200K

[PW70d 1700z04-001-040]

Precison potentiometer type PW70d; Winding angle 360 deg continous, wiper rotation without limit stops at begining 45 deg shorted value of resistance 2kohm+-2% active angle 120 deg; at end 155 deg shorted reactive winding 40 deg; Fi draving shaft 6,00 mm lenght from support suface 24 mm PW70-2K-320D-200K
ZapytajZapytajZapytaj BRAKfoto foto foto foto foto foto foto
PW70D 1700Z04-001.040

PW70-2K-420842

[PW70D 1700Z04-001.040]

Precison potentiometer type PW70d; Winding angle 360 deg continous, wiper rotation without limit stops at begining 45 deg shorted value of resistance 2kohm+-2% active angle 120 deg; at end 155 deg shorted reactive winding 40 deg; Fi draving shaft 6,00 mm lenght from support suface 24 mm
ZapytajZapytajZapytaj BRAKfoto foto foto foto foto foto foto Info Zapytaj

PW70D 1K 1700Z04-096.001

kąt pracy 1kohm / 350 stopni
ZapytajZapytajZapytaj BRAK Info Zapytaj
PW70 6,02K 180 95037964

PW70 6,02K 180 95037964

ZapytajZapytajZapytaj BRAKfoto foto foto Info Zapytaj
Cena netto w PLN za sztukę przy zakupie minimum sztuk:

PW70-100

ZapytajZapytajZapytaj BRAK

pw70-812

[Potencjometr]

ZapytajZapytajZapytaj BRAK
PW55/01 2X2K5/2X85 1573s10-...

PW55/01 2X2K5/2X85

[PW55/01 2X2K5/2X85 1573s10-...]

PW55-01d in flat version wiper continous rotation without linit stops with center tappin tapping width aprox. 3-4 deg at begining and end each 90 deg shorted Resistance 2 x 2500 ohm +-5% active raneg 2 x 85 deg
ZapytajZapytajZapytaj BRAK
PW55/01 2X5K/2X85 deg 1573s10-006.100

PW55/01 2X5K/2X85

[PW55/01 2X5K/2X85 deg 1573s10-006.100]

PW55-01d in flat version wiper continous rotation without linit stops with center tappin tapping width aprox. 3-4 deg at begining and end each 90 deg shorted Resistance 2 x 5000 ohm +-5% active raneg 2 x 85 deg
ZapytajZapytajZapytaj BRAKfoto foto foto foto foto foto foto
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 1510
PW55/01 5K/250 DEG 1573s10-000.022

PW55/01 5K/250 DEG

[PW55/01 5K/250 DEG 1573s10-000.022]

flat design; wiper rotatable without linit stops for mechanical purposes only; wiper is not allowed to rotate without stops und voltage resistance 5kohm+-5% / 250 deg overtravel symetrical short-circuited PW55/01 5K/250 DEG 1573s10-000.022 Hs-code 85333100
ZapytajZapytajZapytaj w drodzefoto foto
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 110100
1573S10-005M011E

PW55-8K0 80ST/330ST

[1573S10-005M011E]

Potencjometr specjany na bazie korpusu PW55 podobny do PD550 55x55x8mm; rozstaw śrub 46x46 mm; Rotation angle 330 deg stops; active angle 80 deg Resistance 8 kohm +-5%; start and end each 135 deg; IP50 Housin Lifetime 10 mill cycles; machanical angle 330 deg; electrical a e 350 deg; Resistance tolerance +-5%; Linearity +-1%; max slide urrent 120mA; torque 0,2Ncm; temperature range -30 - + 80 deg c Uwaga: zdjęcie podobnego
ZapytajZapytajZapytaj BRAKfoto pdf Info Zapytaj
Cena netto w PLN za sztukę przy zakupie minimum sztuk:
wkrątce

PK613-24D-99025168

ZapytajZapytajZapytaj BRAKfoto wkrątce
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 125

PK613-24MILL

Special OEM Version 5k+5k
ZapytajZapytajZapytaj BRAK

PK613-24MILL ELT17360

Potentiometer 5k+5k Special OEM version
ZapytajZapytajZapytaj BRAK Info Zapytaj
Cena netto w PLN za sztukę przy zakupie minimum sztuk:

PK613II

ZapytajZapytajZapytaj BRAK
PK613-46MIID 5K ELT159935; PK613-46M IID 5K 352 1566Z81-005.110 1566Z81-005.010

PK613-46MIID 5K ELT159935

[PK613-46MIID 5K ELT159935; PK613-46M IID 5K 352 1566Z81-005.110 1566Z81-005.010]

potencjometr servo 13; podwójny 5kohmx2 352 deg; ct center tap; kabelek dł.300mm kabel lify 0,25mm2 ośka 6mm dł.14mm 1566z81-005m110d 5 kohm Shock proof version; Przew.plastik 1566Z82-005.110 1566Z82-005-010 Precision Plastic Potentiometer PK613MIId-46 with resistance elements SD in casing of servo mount size 13 version 1566Z81-005M110D connection via plug, label FASTON wiper continuous rotation without limit stops R1 = 5 kU ± 20%/352° R2 = 5 kU ± 20%/352° each with center tapping with soldered wires stranded hook-up wire highflexible type Lify, 0,25 mm2 (128x0,05) wire length 350 mm shaft 6 mm Ý 14 mm long design for ships i.e. with sintered bearing shock-proof version Patrz PK613-46MIID-5K 2G CT
ZapytajZapytajZapytaj w drodzepdf
PK613-46M-ii-d elt-159935; PK613-46M IID 5K 352 1566Z81-005.110 1566Z81-005.010

PK613-46M-ii-d elt-159935

[PK613-46M-ii-d elt-159935; PK613-46M IID 5K 352 1566Z81-005.110 1566Z81-005.010]

potencjometr servo 13; podwójny 5kohmx2 352 deg; ct center tap; kabelek dł.300mm kabel lify 0,25mm2 ośka 6mm dł.14mm 1566z81-005m110d 5 kohm Shock proof version; Przew.plastik 1566Z82-005.110 1566Z82-005-010 Precision Plastic Potentiometer PK613MIId-46 with resistance elements SD in casing of servo mount size 13 version 1566Z81-005M110D connection via plug, label FASTON wiper continuous rotation without limit stops R1 = 5 kU ± 20%/352° R2 = 5 kU ± 20%/352° each with center tapping with soldered wires stranded hook-up wire highflexible type Lify, 0,25 mm2 (128x0,05) wire length 350 mm shaft 6 mm Ý 14 mm long design for ships i.e. with sintered bearing shock-proof version Patrz PK613-46MIID-5K 2G CT
ZapytajZapytajZapytaj w drodzefoto pdf

PK620

ZapytajZapytajZapytaj w drodze
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 125
PK620-16MIII/G90/IP65 3601z02-032.014

PK620-16MIII/G90/IP65

[PK620-16MIII/G90/IP65 3601z02-032.014]

Potentiometer in ship design i.e.with sintered bearing and double contact pressure shaft lenght of potentiometer 6mm RS Dreahwinkel 118 deg; Getriebe 1:3 Wicklung I+II+III 1 kohm+-10% / 355 deg 2629s01-00:5008; Potent eter in ship design i.e.with sintered bearing and double contac Precision Plastic Potentiometer PK620MIII-G90 in casing G90 IP e IP65 withoit special ID#marking i-1:3 Ratio speed increasing io backlash comensated potentiometer embedded without lateral d ligment 3 resistance tracks 1K+-10% each/355 deg with SD
ZapytajZapytajZapytaj BRAK
PK620-16MIIID 1576Z11013.001 1576Z12-013.101

PK620-16MIIID 1576Z11013.

[PK620-16MIIID 1576Z11013.001 1576Z12-013.101]

PK620MIIId-16 157Z12-013.101 In servo casing size 20 with conductive plastic element wiper rotates without limit sto resistance 3 x 1kohm+-10% active angle each 355 deg with increased contact pressure sebse of rotation left shaft 6,00 mm with sinter bearing lenght from support 22 mm lead-out 6 mm at the back with scresw driver slot
ZapytajZapytajZapytaj BRAKwkrątce wkrątce wkrątce Info Zapytaj
PK620-16MIIID-3X1K 1576z12-013.101

PK620-16MIIID-3X1K

[PK620-16MIIID-3X1K 1576z12-013.101]

ZapytajZapytajZapytaj BRAK Info Zapytaj
Cena netto w PLN za sztukę przy zakupie minimum sztuk:
PK620-31D-1

PK620-31D-1

ZapytajZapytajZapytaj BRAKfoto foto
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 124

PK62046MIIID1576Z81269011

[PK620-46MIIID 1576Z81.269.011]

Precision potentiometer PK620MIIId-46 in casing size 20 3 resistance tracks, with resistance wlwmwnt SD wiper continous rotation without linit stops resistance 3 x 1kohm +-10% active angle each 355 deg; with increased contact pressur ense on rotation left with flat solder pins, short version, shaft 6,00 mm diameter wi sintered bearing lenght from support 22 mm led out on rear 6 mm th screwdriver slot holes in direction of wiper connection
ZapytajZapytajZapytaj BRAK Info
Cena netto w PLN za sztukę przy zakupie minimum sztuk:

PK620-55D/MU-I02

[PK620-55D/MU-I02 pk620d/mu-i02 1574z80-260m005]

Precison angular position transmitter PK620D/MU-i02 in servo fl casing 20; wiper rotates without limit stops output 4-20mA at max 600 ohm; preset 0-355 deg; supp;y 20-30V D 2 wire system connection via Faston plug-connections short desi shaft 6,00 mm / 14 mm long
ZapytajZapytajZapytaj BRAKfoto

PK620II

ZapytajZapytajZapytaj BRAK

PK620III

ZapytajZapytajZapytaj BRAK

PM45W3

Potencjometry tej firmy sprowadzamy na zamówienie lub proponujemy odpowiedniki
ZapytajZapytajZapytaj BRAKpdf Info

pw620

ZapytajZapytajZapytaj BRAK
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 1410

PW620/90-41D 2 WIPERS

[PW620/90-41D R=5217 ohm RQ=1304 ohm 2 WIPERS 1570z80-265.006]

Precision potentiometer PW620/90-41d in casing of size 20 ( ser 0 = 50,8 mm) Ac four-coil transmitter with 4 tapings 90 deg with 2 wipers 180 deg R=approx 5217 oum RQ=approx 1304 ohm with plug connection Faston short design shaft diameter 6,00mm, 35mm long; torque 3/4 10 cmp and 3/4 0,1
ZapytajZapytajZapytaj BRAK
Cena netto w PLN za sztukę przy zakupie minimum sztuk:
PW620-01-90-1

PW620-01-90-1

ZapytajZapytajZapytaj BRAKfoto foto

PW620-01/90-01 5217

360 deg P=2,5W R 5217 ohm +-5% Lin +-0,2%
ZapytajZapytajZapytaj BRAK Info
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 125

PW620-18D/G90/IP65 5K+-1%

[PW620-18D/G90/IP65 5K+-1% / 345 deg]

ZapytajZapytajZapytaj BRAK Info
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 1510
Potencjometr PW620-18d/MU-i01

PW620-18d/MU-i01

[Potencjometr PW620-18d/MU-i01]

ZapytajZapytajZapytaj24-26BRAK
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 124
Potencjometr PW620-38MIID 1571ZA2-257.001

PW620-38MIID 1571ZA225700

[Potencjometr PW620-38MIID 1571ZA2-257.001]

PW620-38MIID 1571ZA2-257.001 Precision angular position transmitter PW620MII038d in servo casing size 20version according to 1571z12-257m001d 2 windings on isolted winding bodies wiper continous rotation without linit stops each winding angle each 360 deg resistance 10435 ohm+-1% /350 deg with soldered connections short version shaft on both sides 6,00 mm diameter Lf1=24 mm Lf2=10mm with screwdriver slot on both side socket 3 x M3/120 deg TD 30mm and M4/180 deg TD 32mm
ZapytajZapytajZapytaj w drodzefoto foto foto foto foto foto pdf Info
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 125
Potencjometr PW620d/MU-i01/GS100/IP65 1831S10-130.015/00

PW620d/MU-i01/GS100/IP65

[Potencjometr PW620d/MU-i01/GS100/IP65 1831S10-130.015/00]

Precision Angular Position Transmitter PW620d/MU-i01/GS100 in cast casing GS100 casing IP code IP65 with acid-resistant and sea-water resistant varnish primary shaft 12 mm with feather and channel accord. to DIN 6885 with internal direct coupling of enclosed PW620d/MU-i01 wiper rotate without limit stops output 4 - 20 mA at max. 600 U preset to 0 - 90° sense of rotation right, with look on the drive supply 20 - 30 V DC with galv. isolation
ZapytajZapytajZapytaj22-24BRAK
Cena netto w PLN za sztukę przy zakupie minimum sztuk: 124
PW620-38MIID-10435OHM

PW620-38MIID-10435OHM

PW620-38MIID 1571ZA2-257.001 PW620-38MIID-10435OHM Precision angular position transmitter PW620MII038d in servo casing size 20version according to 1571z12-257m001d 2 windings on isolted winding bodies wiper continous rotation without linit stops each winding angle each 360 deg resistance 10435 ohm+-1% /350 deg with soldered connections short version shaft on both sides 6,00 mm diameter Lf1=24 mm Lf2=10mm with screwdriver slot on both side socket 3 x M3/120 deg TD 30mm and M4/180 deg TD 32mm
ZapytajZapytajZapytaj w drodzefoto foto foto foto foto foto foto
Cena netto w PLN za sztukę przy zakupie minimum sztuk:
1708Z03-096.014

1708Z03-096.014

otentiometer in Cast Iron IP40 Case - 60 degree Gear-less movement x 10k Ohms PW70A Precision Potentiometer in cast iron case to IP40. Potentiometer is 10k Ohms +-1% across the 60 Degree movement, without gears and includes a slipping clutch for mechanical protection. 125mm x 75mm x 60mm overall. Shaft is 6mm x 16mm Fixing flange has 4 x 6mm dia smooth holes on 88mm pcd. Used on FAS Packaging Machinery and any high performace dancer bar or dancing roller applications. Other resistance values are available on request. Customs Tariff code: 85 33 31 000 Part Code: 1708Z03-096.014 recision potentiometer PW70A in cast casing IP40 with PW1700Z04-096.014 R = 10 kohm+-1% / 60 deg stops shaft 6,00 mm fi Lf1 = 16 mm with sliping clutch
ZapytajZapytajZapytaj w drodze


Meditronik-logo

Części elektroniczne /potencjometry / joysticki /układy scalone - zamówienia i zapytania:
elektronika@meditronik.com.pl, tel. 22-651-72-42 wew.108
(Przy zapytaniach prosimy podawać ilość !)
Biuro Handlowe: 02-952 Warszawa, ul. Wiertnicza 129
tel. 22-651-72-42, fax 22-651-72-46, tel. kom. 600-344-411
