HDF 3020 SERIES
DC FAN
Operating Temp. Range: -20~+60°C
Locked Rotor & Polarity Protected
Bearing : Ball Bearing
Housing : Plastic
Fan Blade : Plastic |
 |

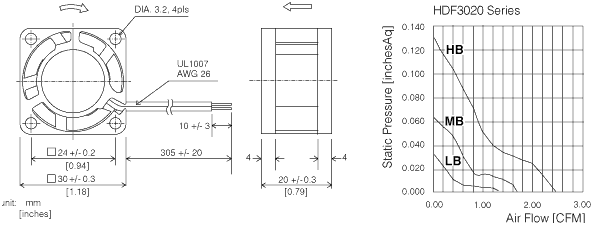

30 x 30 x 20mm
| Model |
HDF
3020L-05LLB |
HDF
3020L-05LB |
HDF
3020L-12LB |
HDF
3020L-12MB |
| Frame
Size (mm) |
30
x 20 |
30
x 20 |
30
x 20 |
30
x 20 |
| Rated
Volt (VDC) |
5 |
5 |
12 |
12 |
| Operating
Volt (VDC) |
4.25-5.75 |
4.25-5.75 |
10.2-13.8 |
10.2-13.8 |
| Rated
Current (mA) |
70 |
100 |
40 |
70 |
| Rated
Input (W) |
0.35 |
0.5 |
0.48 |
0.84 |
| Max.
Air Flow (CFM) |
1.4 |
1.7 |
1.7 |
2.5 |
| Max.
Static Pres. (Inch Aq) |
0.04 |
0.06 |
0.06 |
0.13 |
| Noise
(1m) (dBA) |
19 |
21 |
21 |
24 |
| Speed
(rpm) |
4300 |
5300 |
5300 |
7800 |
| Weight
(gm) |
29 |
29 |
29 |
29 |
|
